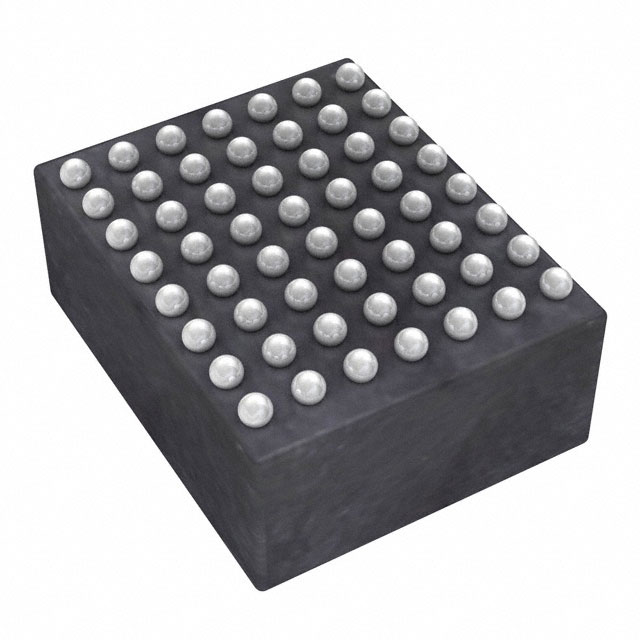

LTM4642IY#PBF
Non-Isolated PoL Module DC DC Converter 2 Output 0.6 ~ 5.5V 0.6 ~ 5.5V - 4A, 4A 4.5V - 20V Input
Availability: In Stock
Package Type: BGA -56
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTM4642IY#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTM4642IY#PBF
| Part Name | LTM4642IY#PBF |
| Manufacturer | Analog Devices |
| Product Category | µModule Buck Regulators |
| Package | CHIP SCALE BGA |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 3/28/2016 1:18:52 PM |
| Pins | 56 |
| Product Link | https://www.analog.com/en/products/ltm4642.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 125C |
| Product Lifecycle | Production |
| RoHS | E |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
