LTM8029IY#PBF
BUCK, 36VIN, 0.6A, 1.2V TO 18V, 35BGA; Primary Input Voltage:36V; No. of Outputs:1; Output Current:600mA; Voltage Regulator Case Style:BGA; No. of Pins:35; Operating Temperature Range:-40°C to +125°C; MSL:MSL 1 - Unlimited; SVHC:No SVHC (18-Jun-2012); Base Number:8029
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTM8029IY#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

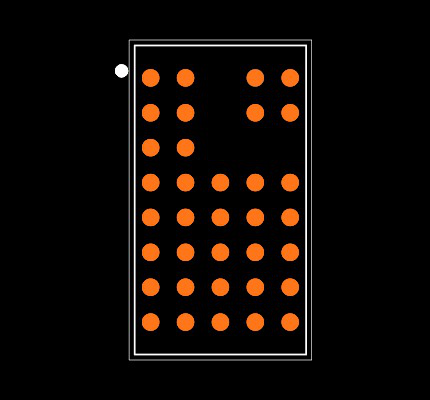

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTM8029IY#PBF
| Part Name | LTM8029IY#PBF |
| Manufacturer | Analog Devices |
| Product Category | Micropower Buck Regulators |
| Package | CHIP SCALE BGA |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 3/21/2012 9:47:05 PM |
| Temperature Range | -40 to 125C |
| Product Link | https://www.analog.com/en/products/ltm8029.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 35 |
| Product Lifecycle | Production |
| RoHS | E |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Number Of Outputs | 1 |
| Converter Type | Step Down |
| Load Regulation | 0.4 % |
| Dimensions | 11.25 x 6.25 x 2.92 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 600 (mA) |
| Minimum Output Voltage (V) | 1.2 V |
| Output Type | Adjustable |
| Maximum Switching Frequency | 2.2 MHz |
| Switching Regulator | Yes |
| Width | 6.25 (mm) |
| Length | 11.25 (mm) |
| Package Type | BGA |
| Maximum Output Voltage (V) | 18 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 4.5 V |
| Height | 2.92 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 35 |
| Maximum Input Voltage (V) | 36 V |
| Line Regulation | 0.3 % |
