LTO150F2R200JTE3
2.2 Ohms ±5% 150W Through Hole Resistor TO-247-2 Automotive AEC-Q200, Non-Inductive Thick Film
Availability: In Stock
Package Type: TO-247-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTO150F2R200JTE3 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

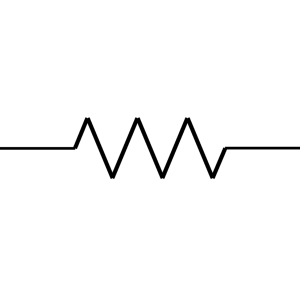

Symbol
No web preview
This Symbol is Available for

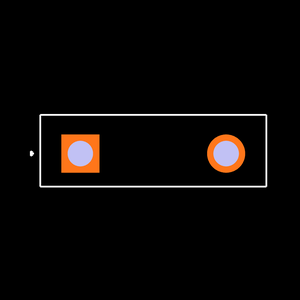

Footprint
No web preview
This Footprint is Available for

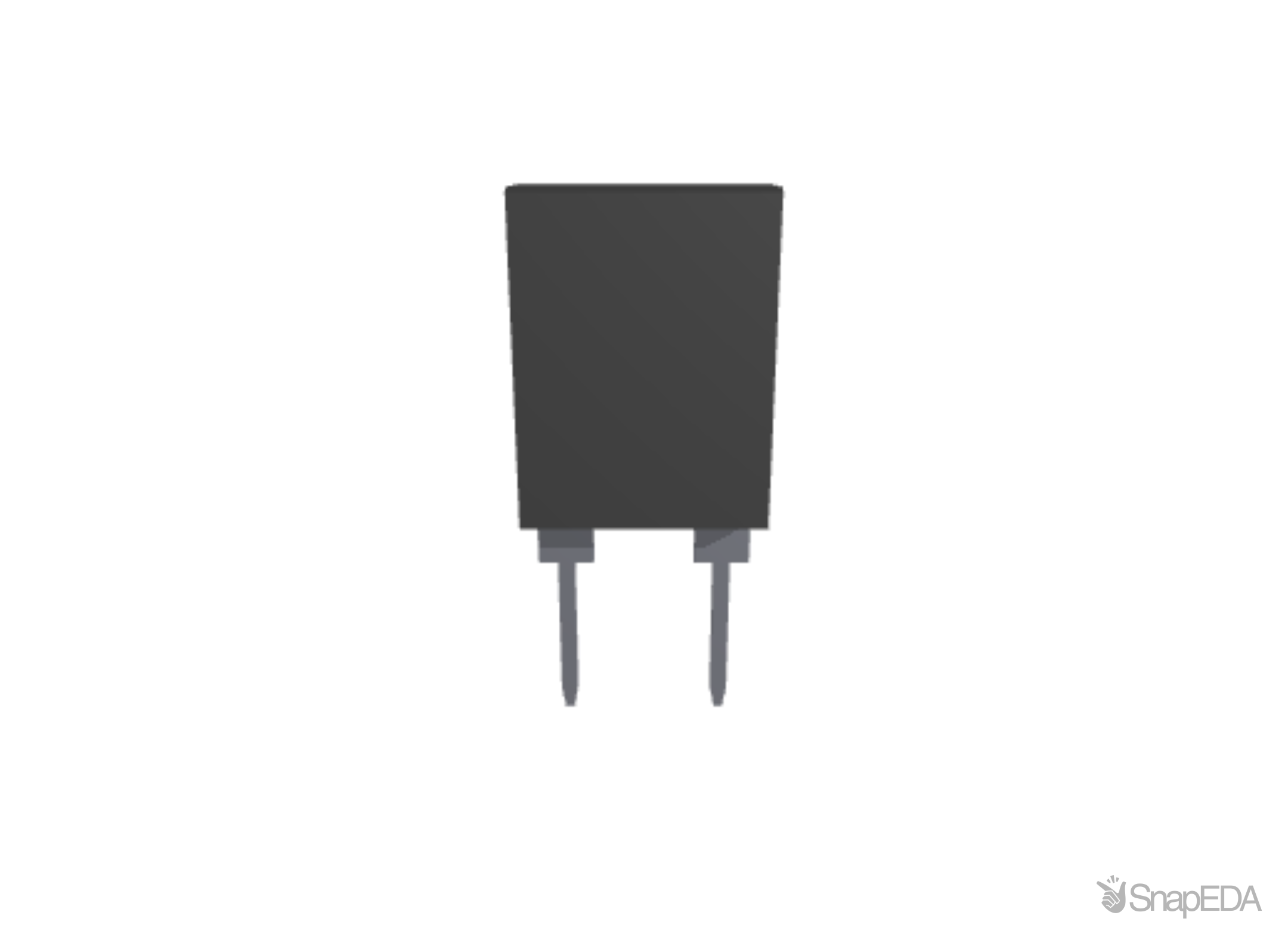

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTO150F2R200JTE3
| Part Name | LTO150F2R200JTE3 |
| Manufacturer | Vishay Sfernice |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | TO-247 |
| Series | LTO 150 |
| Resistance | 2.2 (Ω) |
| Temperature Coefficient | ±350 (ppm/°C) |
| Automotive Standard | AEC-Q200 |
| Axial Radial | Radial |
| Technology | Thick Film |
| Minimum Operating Temperature | -55 (°C) |
| Distrelec Product Id | 30213231 |
| Composition | Ceramic |
| Power Rating | 150 (W) |
| Maximum Operating Temperature | +175 (°C) |
| Tolerance | ±5 (%) |
| Lead Pitch | 10.16 (mm) |
