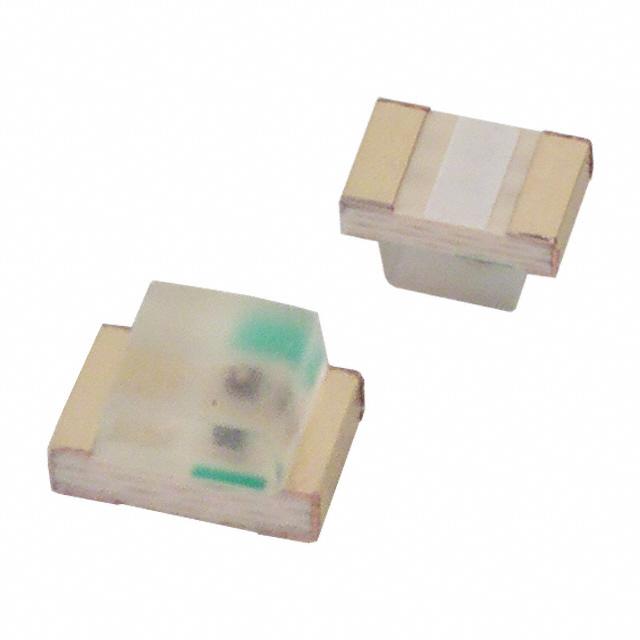

LTST-C170GKT
Green 569nm LED Indication - Discrete 2.1V 0805 (2012 Metric)
Availability: Out of Stock
Package Type: 0805
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTST-C170GKT by Lite-On and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

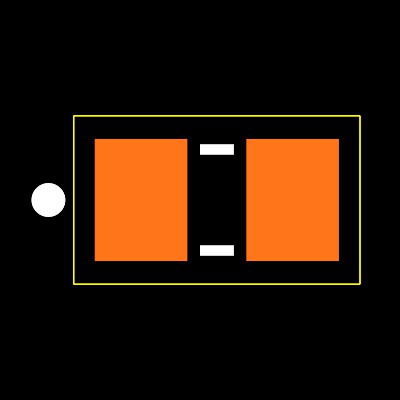

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTST-C170GKT
| Part Name | LTST-C170GKT |
| Manufacturer | Lite-On Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | Clear |
| Dimensions | 2 x 1.25 x 1.1 (mm) |
| Mounting Type | Surface Mount |
| Series | CHIP LED 0805 |
| Dominant Wavelength | 569 nm |
| Viewing Angle | 130 ° |
| Forward Voltage (V) | 2.1 V |
| Led Colour S | Green |
| Luminous Intensity | 6 mcd |
| Number Of Pins | 2 |
| Number Of Leds | 1 |
| Lens Shape | Rectangle |
| Package Type | 2012 (0805) |
