LTST-C19FD1WT
Blue, Green, Orange 470nm Blue, 525nm Green, 605nm Orange LED Indication - Discrete 3.5V Blue, 3.5V Green, 2V Orange 4-SMD, No Lead
Availability: Out of Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTST-C19FD1WT by Lite-On and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

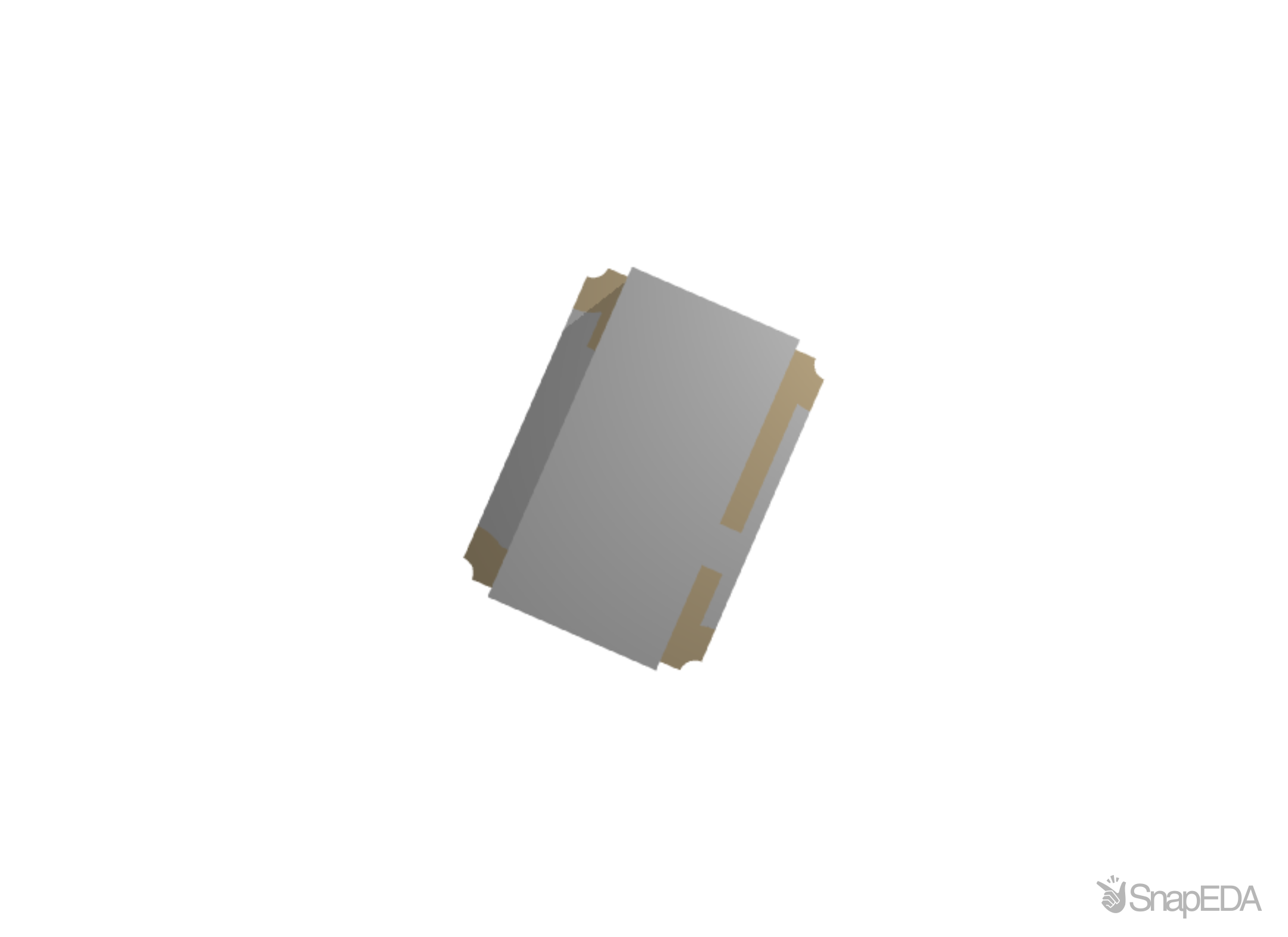

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTST-C19FD1WT
| Part Name | LTST-C19FD1WT |
| Manufacturer | Lite-On Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | White |
| Dominant Wavelength | 605 / 525 / 470 nm |
| Dimensions | 2.1 x 1.6 x 0.55 (mm) |
| Mounting Type | Surface Mount |
| Forward Current (A) | 80 mA, 100 mA |
| Lens Finish | Diffused |
| Viewing Angle | 130 ° |
| Forward Voltage (V) | 2.4 V |
| Led Colour S | Blue, Green, Orange |
| Luminous Intensity | 180 (Blue) mcd, 180 (Orange) mcd, 450 (Green) mcd |
| Number Of Pins | 4 |
| Number Of Leds | 3 |
| Lens Shape | Rectangular |
