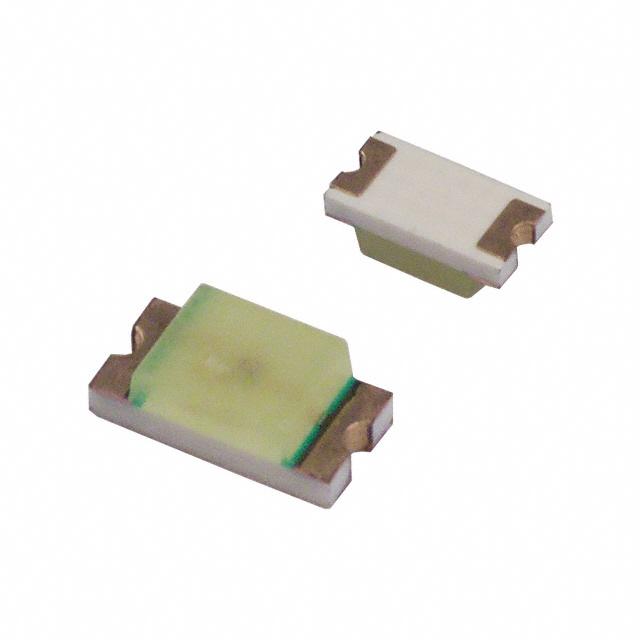

LTW-150TK
White - LED Indication - Discrete 3.2V 1206 (3216 Metric)
Availability: In Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTW-150TK by Lite-On and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTW-150TK
| Part Name | LTW-150TK |
| Manufacturer | Lite-On Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | Yellow |
| Dimensions | 3.2 x 1.6 x 1.1 (mm) |
| Mounting Type | Surface Mount |
| Package Type | 3216 (1206) |
| Series | CHIP LED 1206 |
| Viewing Angle | 130 ° |
| Led Colour S | White |
| Forward Voltage (V) | 3.2 V |
| Luminous Intensity | 260 mcd |
| Number Of Pins | 2 |
| Number Of Leds | 1 |
| Lens Shape | Rectangle |
