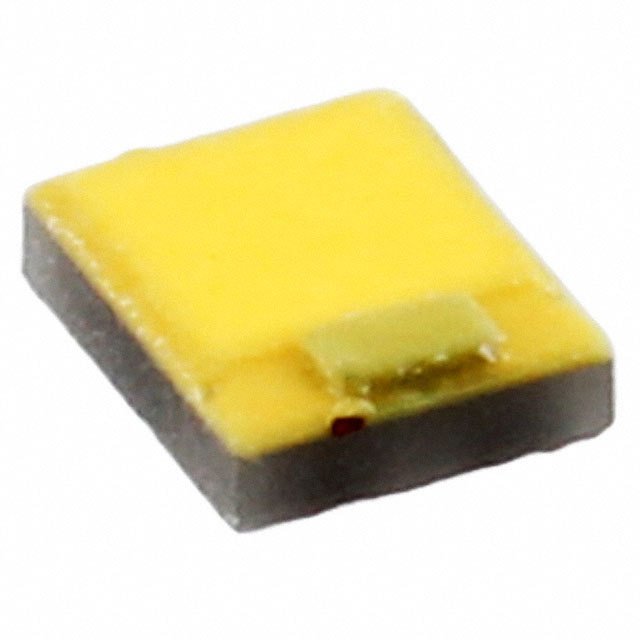

LXZ2-PR02
LED Lighting Color series Blue 448nm (Typ) 0806 (2016 Metric)
Availability: Out of Stock
Package Type: 0806
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LXZ2-PR02 by Philips and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

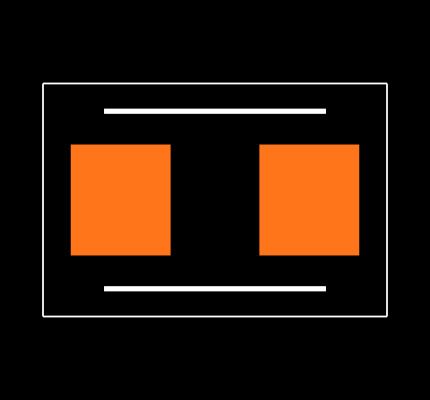

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LXZ2-PR02
| Part Name | LXZ2-PR02 |
| Manufacturer | Philips Lumileds |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 1.6 x 2.0 x 0.68 (mm) |
| Mounting Type | Surface Mount |
| Forward Current (A) | 700 (mA) |
| Series | LUXEON Z ES |
| Dominant Wavelength | 447.5 nm |
| Viewing Angle | 140 ° |
| Forward Voltage (V) | 2.85 V |
| Led Colour S | Blue |
| Number Of Pins | 2 |
| Number Of Leds | 1 |
| Lens Shape | Rectangle |
| Package Type | 2016 (0806) |
No issues have been reported for the LXZ2-PR02
If you experienced any issues with this part, please report it.
