M20-9990346

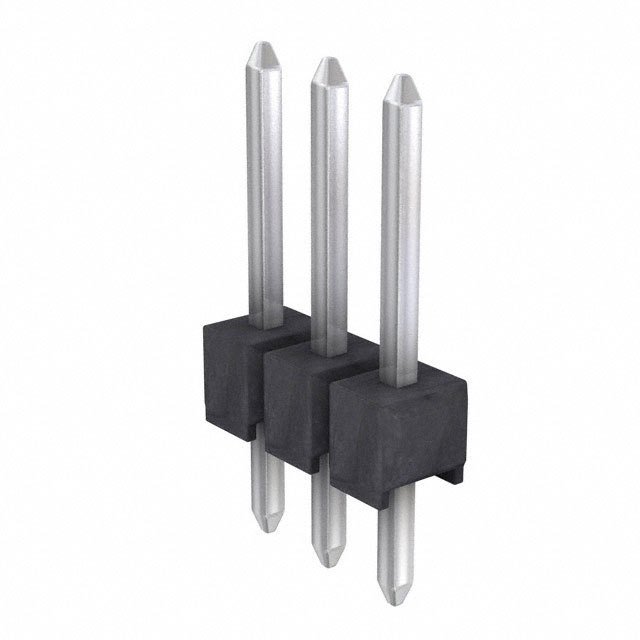

2.54mm (0.1") Pitch SIL Vertical Throughboard Pin Header, 6.1mm mating pin height, tin, 3 contacts
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the M20-9990346 by Harwin and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the M20-9990346
| Part Name | M20-9990346 |
| Manufacturer | Harwin |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tail Pin Length | 3.0 (mm) |
| Current Rating (A) | 3.0 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Series | M20 |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Board to Board, Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Mating Pin Length | 6.1 (mm) |
| Number Of Contacts | 3 |
| Contact Material | Brass |
