M24512-RMN6P
EEPROM Memory IC 512Kb (64K x 8) I²C 1 MHz 500 ns 8-SOIC
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the M24512-RMN6P by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

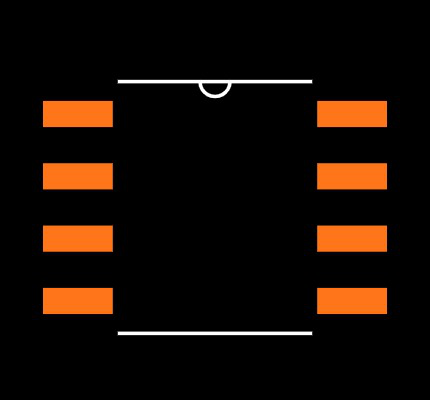

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the M24512-RMN6P
| Part Name | M24512-RMN6P |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Data Retention | 200 (yr) |
| Number Of Words | 64 (k) |
| Dimensions | 4.9 x 3.9 x 1.25 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Organisation | 64K x 8 bit |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage (V) | 1.8 V |
| Number Of Bits Per Word | 8 (bit) |
| Automotive Standard | AEC-Q100 |
| Memory Size | 512 (kbit) |
| Package Type | SOIC |
| Interface Type | Serial-I2C |
| Programming Voltage (V) | 1.8 → 5.5 (V) |
| Maximum Random Access Time | 500 (ns) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
