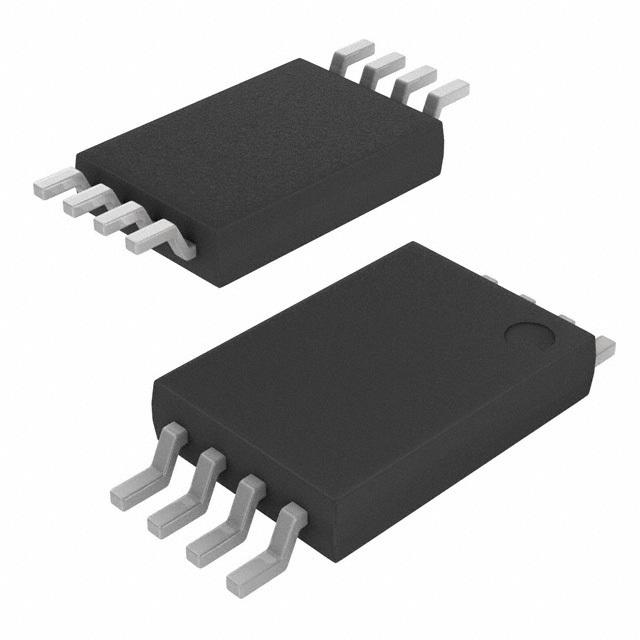

M24C64-WDW6TP
EEPROM Memory IC 64Kb (8K x 8) I²C 1 MHz 450 ns 8-TSSOP
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the M24C64-WDW6TP by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the M24C64-WDW6TP
| Part Name | M24C64-WDW6TP |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Data Retention | 40 (yr) |
| Dimensions | 3 x 4.4 x 1 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Organisation | 8K x 8 bit |
| Minimum Operating Supply Voltage (V) | 2.5 V |
| Pin Count | 8 |
| Memory Size | 64 (kbit) |
| Package Type | TSSOP |
| Interface Type | Serial-I2C |
| Programming Voltage (V) | 2.5 → 5.5 (V) |
| Maximum Random Access Time | 900 (ns) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
Inventory for the M24C64-WDW6TP by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
412
|
|
Visit Site | |
|
★ Featured
|
12,000
|
1,555 x $0.19
|
Visit Site | |
| Arrow Electronics |
36,000
|
|
Visit Site | |
| Avnet America |
408,000
|
|
Visit Site | |
| Buerklin |
|
4,000 x $0.17
|
Visit Site | |
| Farnell UK |
89
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Newark |
689
|
|
Visit Site | |
| TME |
781
|
|
Visit Site | |
| Verical |
16,000
|
|
Visit Site | |
| element14 Singapore |
89
|
|
Visit Site |
No issues have been reported for the M24C64-WDW6TP
