M300-MV31045M1

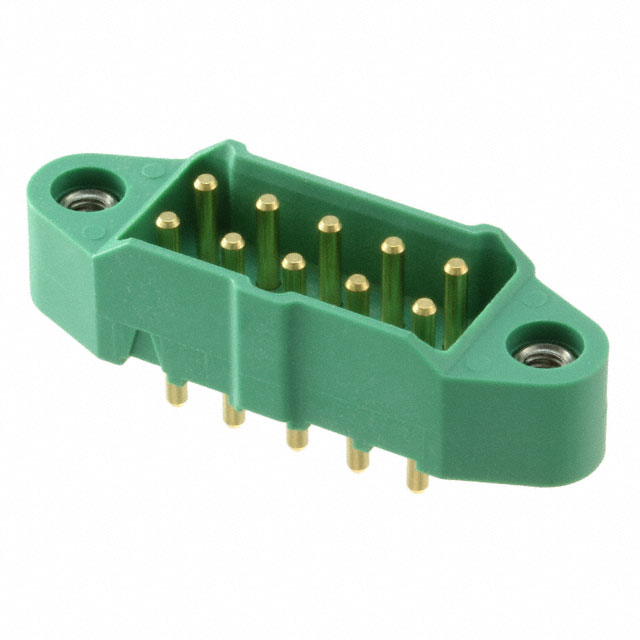

M300 DIL Male Throughboard Connector, with internally threaded Jackscrews, 5+5 contacts
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the M300-MV31045M1 by Harwin and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

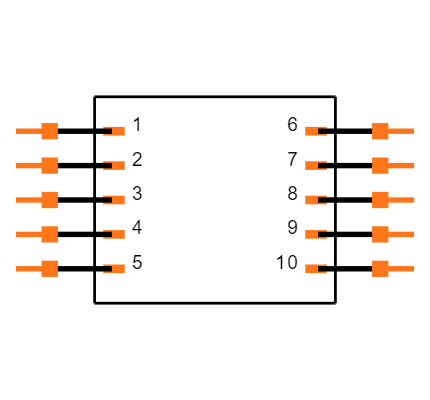

Symbol
No web preview
This Symbol is Available for

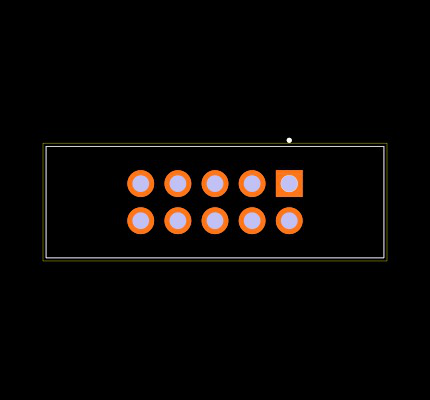

Footprint
No web preview
This Footprint is Available for

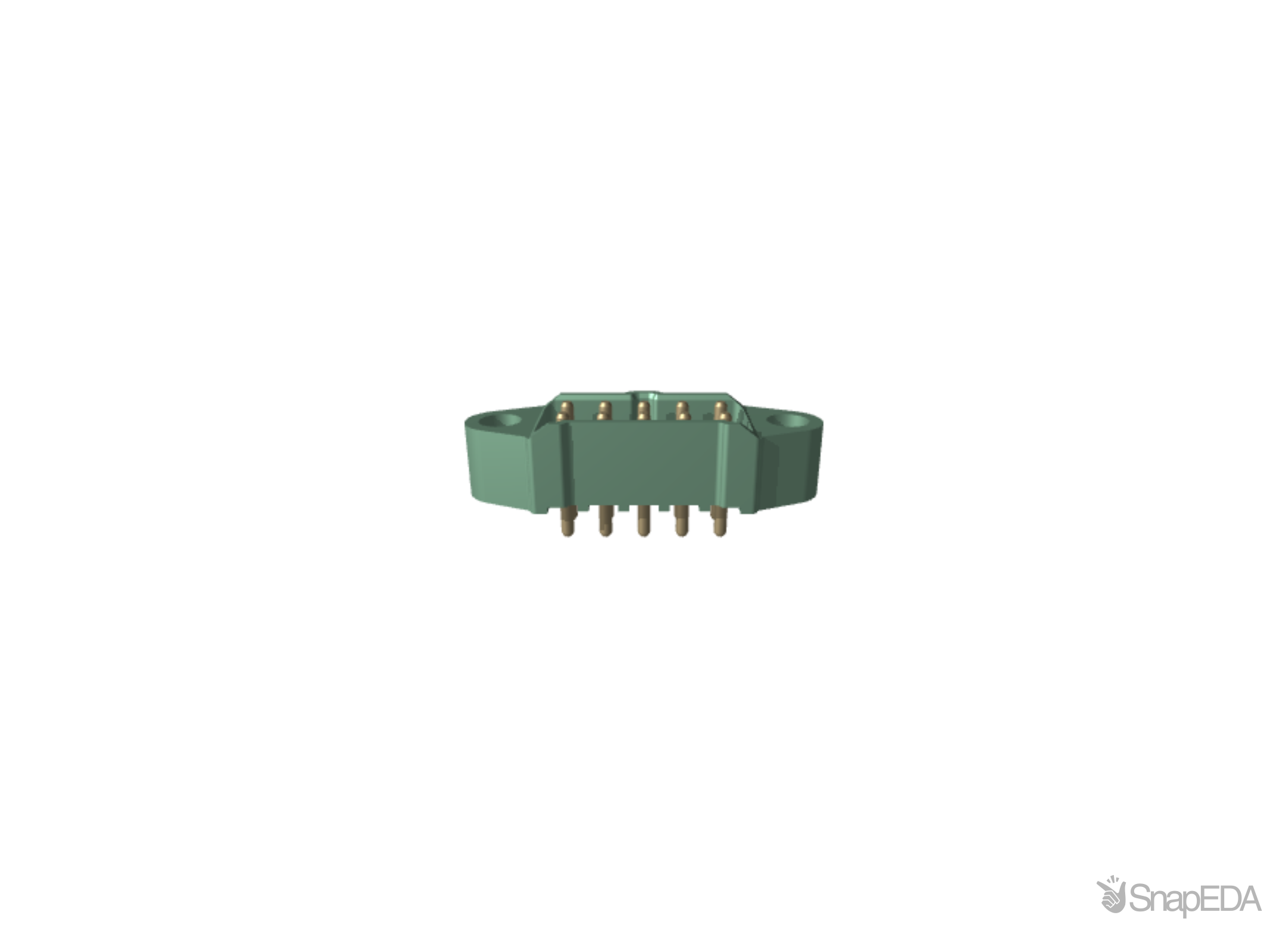

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the M300-MV31045M1
| Part Name | M300-MV31045M1 |
| Manufacturer | Harwin |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | PCB Mount |
| Series | M300 |
| Body Orientation | Vertical |
| Termination Method | Solder |
| Number Of Rows | 2 |
| Pitch | 3 (mm) |
| Number Of Contacts | 10 |
| Type | Throughboard Connector |
