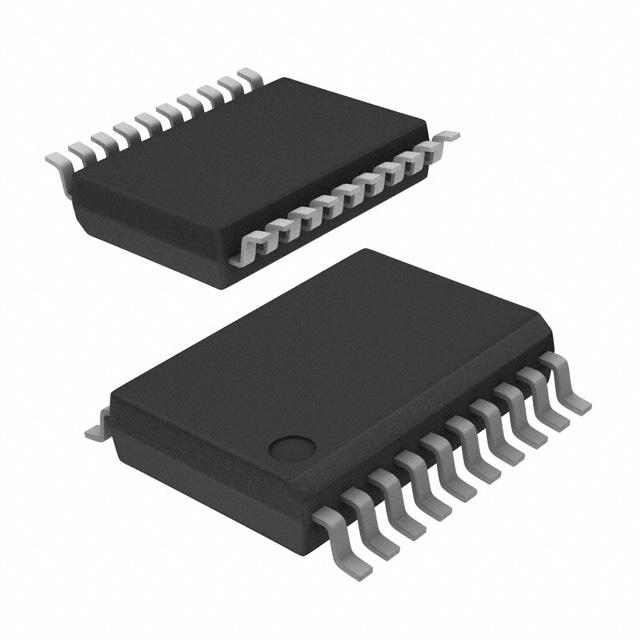

M41ST87WSS6F
5.0 V, 3.3/3.0 V secure real-time clock , NVRAM supervisor with tamper detection and 128 bytes of clearable NVRAM
Availability: In Stock
Package Type: SSOP-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the M41ST87WSS6F by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the M41ST87WSS6F
| Part Name | M41ST87WSS6F |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Functions | Calendar |
| Dimensions | 7.5 x 5.6 x 1.85 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Date Format | D:D:M:Y:C |
| Height | 1.85 (mm) |
| Width | 5.6 (mm) |
| Length | 7.5 (mm) |
| Package Type | SSOP |
| Bus Type | Serial |
| Time Format | HH:MM:SS:HSS |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 20 |
| User Ram | 128 (B) |
