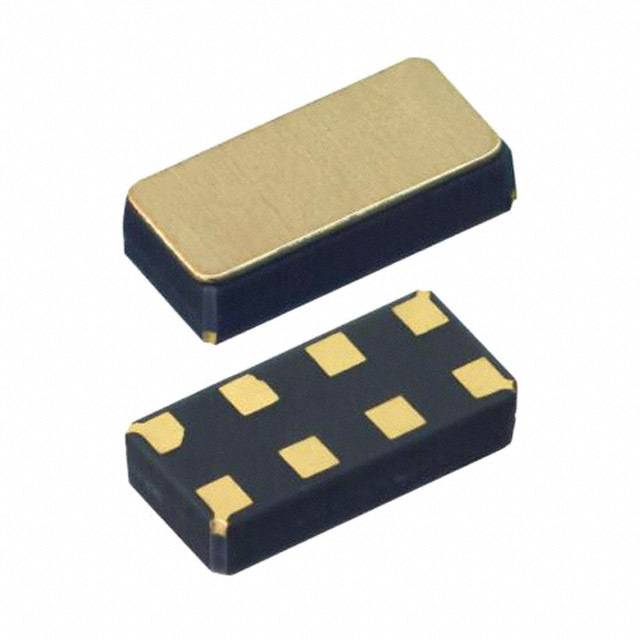

M41T62LC6F

Name: M41T62LC6F
Brand: STMicroelectronics

Real Time Clock (RTC) IC Clock/Calendar - I²C, 2-Wire Serial 8-LCC

Availability: In Stock

Package Type: LCC-8

CAD Models: Symbol and Footprint

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the M41T62LC6F by STMicroelectronics and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

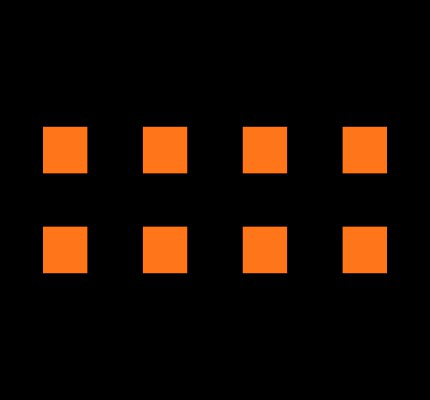

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the M41T62LC6F

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the M41T62LC6F

Part Name	M41T62LC6F
Manufacturer	STMicroelectronics
RoHS	True
Life Cycle Status	Obsolete
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Functions	Alarm, Calendar, Real Time Clock, Square Wave Output, Watchdog Timer
Dimensions	3.3 x 1.6 x 0.8 (mm)
Maximum Operating Supply Voltage (V)	4.4 V
Minimum Operating Supply Voltage (V)	1.3 V
Date Format	Binary, D:D:M:Y:C
Height	0.8 (mm)
Width	1.6 (mm)
Length	3.3 (mm)
Package Type	CLCC
Minimum Operating Temperature	-40 °C
Time Format	Binary, HH:MM:SS
Mounting Type	Surface Mount
Maximum Operating Temperature	+85 °C
Pin Count	8
Bus Type	Serial
User Ram	16 (B)
