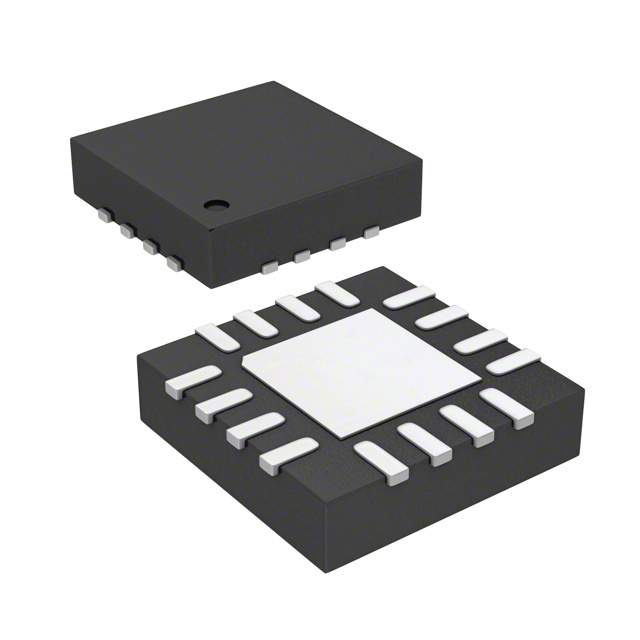

M41T65Q6F
Real Time Clock (RTC) IC Clock/Calendar - I²C, 2-Wire Serial 16-VFQFN Exposed Pad
Availability: Out of Stock
Package Type: QFN-16
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the M41T65Q6F by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

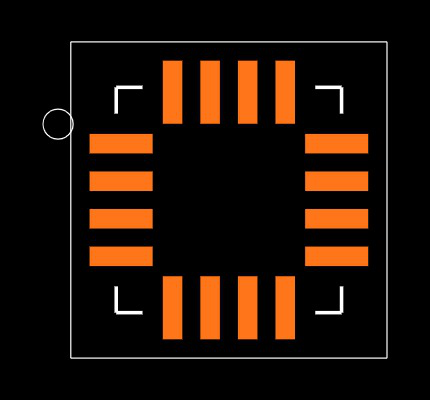

Footprint
No web preview
This Footprint is Available for

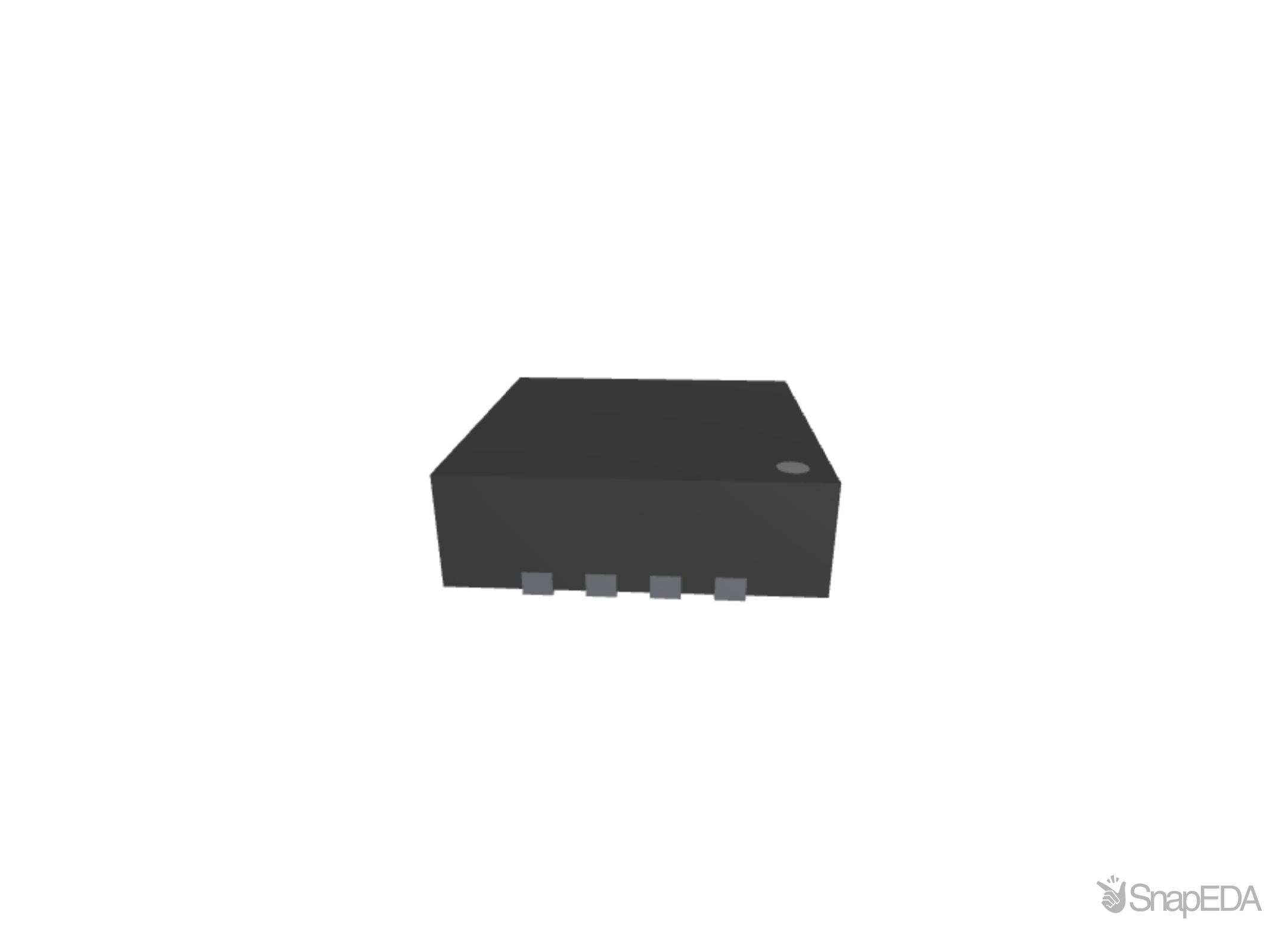

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the M41T65Q6F
| Part Name | M41T65Q6F |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Functions | Alarm, Battery Backup, Calendar, Watchdog Timer |
| Dimensions | 3 x 3 x 0.88 (mm) |
| Maximum Operating Supply Voltage (V) | 4.4 V |
| Minimum Operating Supply Voltage (V) | 1.3 V |
| Date Format | DW:DM:M:Y |
| Height | 0.88 (mm) |
| Width | 3 (mm) |
| Length | 3 (mm) |
| Package Type | QFN |
| Minimum Operating Temperature | -40 °C |
| Time Format | HH:MM:SS:hh |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
| Bus Type | Serial-I2C |
| User Ram | 16 (B) |
