M50-3600542
1.27mm (0.05") Pitch DIL Vertical SMT Pin Header, selective gold + tin, 5+5 contacts
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the M50-3600542 by Harwin and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

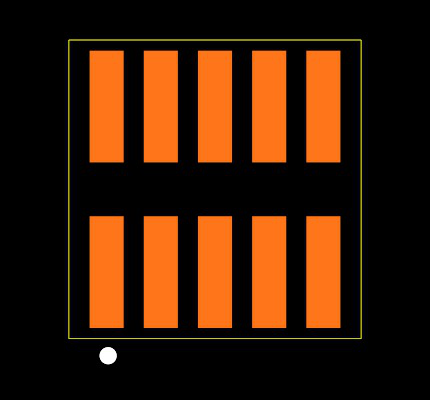

Footprint
No web preview
This Footprint is Available for

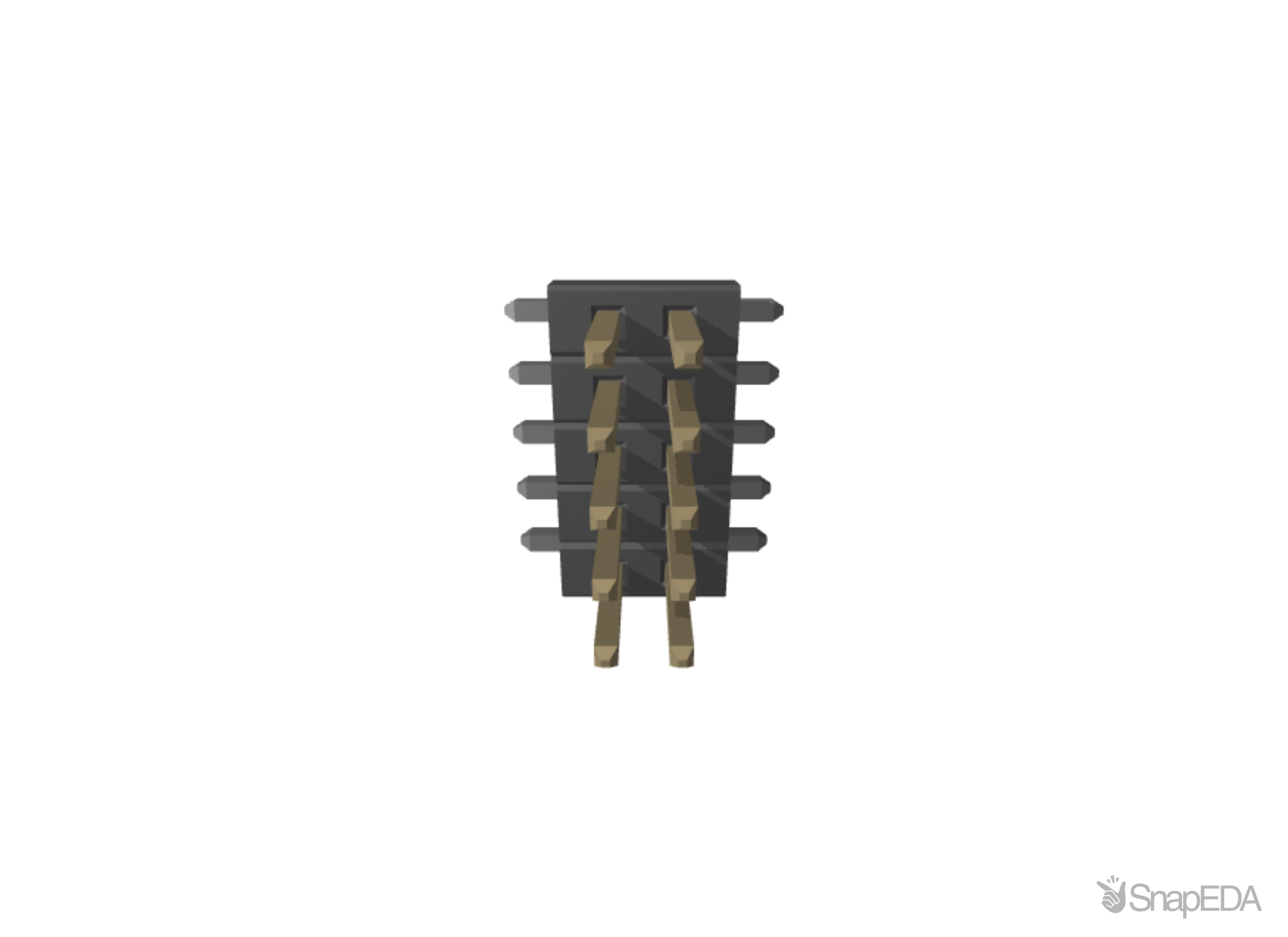

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the M50-3600542
| Part Name | M50-3600542 |
| Manufacturer | Harwin |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.0 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Surface Mount |
| Series | Archer M50 |
| Body Orientation | Straight |
| Pitch | 1.27 (mm) |
| Connector System | Board to Board, Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Mating Pin Length | 3.0 (mm) |
| Number Of Contacts | 10 |
| Contact Material | Copper Alloy |
Inventory for the M50-3600542 by Harwin from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
3,369
|
350 x $0.86
|
Visit Site | |
| Farnell UK |
3,801
|
|
Visit Site | |
| Newark |
3,801
|
|
Visit Site | |
| Onlinecomponents |
410
|
|
Visit Site | |
| Powell Electronics |
32
|
|
Visit Site | |
| RS UK |
594
|
|
Visit Site | |
| TME |
526
|
|
Visit Site | |
| TTI Europe |
6,000
|
1,000 x $0.75
|
Visit Site | |
| Verical |
400
|
|
Visit Site | |
| element14 Singapore |
3,801
|
|
Visit Site |
No issues have been reported for the M50-3600542
If you experienced any issues with the symbol or footprint, please report it.
