M701-330442

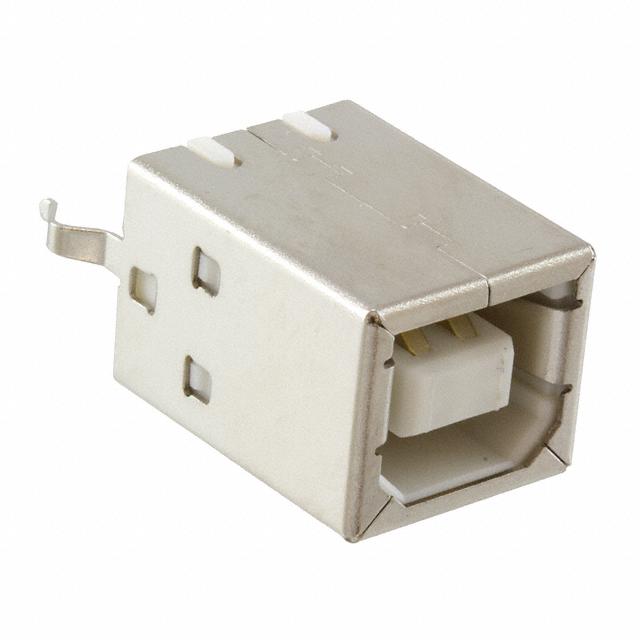

USB Type B - Vertical Female Throughboard, selective gold + tin
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the M701-330442 by Harwin and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

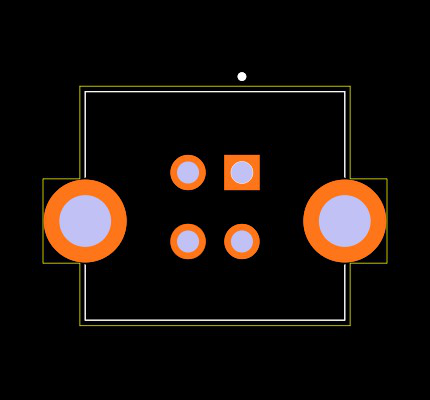

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the M701-330442
| Part Name | M701-330442 |
| Manufacturer | Harwin |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | M701 |
| Current Rating (A) | 1.5 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 500.0 V |
| Gender | Female |
| Usb Type | B |
| Number Of Ports | 1 |
| Minimum Operating Temperature | -55.0 (°C) |
| Termination Method | Solder |
| Maximum Operating Temperature | +85 (°C) |
| Body Orientation | Straight |
| Contact Material | Phosphor Bronze |
Inventory for the M701-330442 by Harwin from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
6,172
|
|
Visit Site | |
|
★ Featured
|
365
|
555 x $0.54
|
Visit Site |
No issues have been reported for the M701-330442
If you experienced any issues with the symbol or footprint, please report it.
