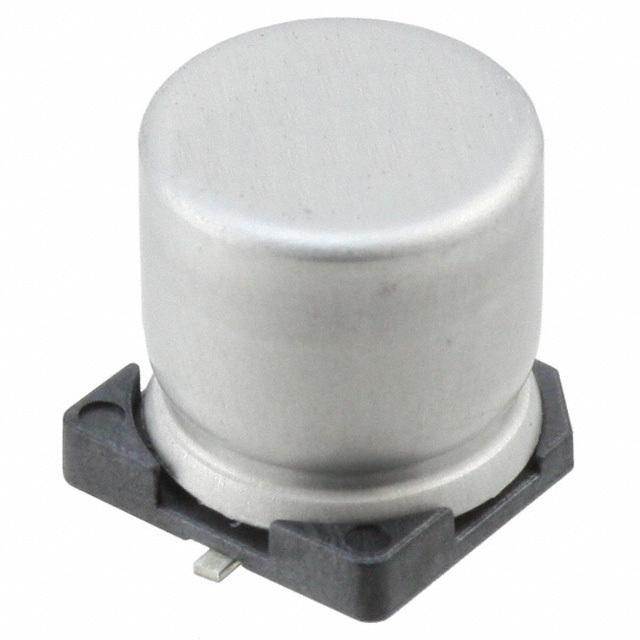

MAL214699103E3
100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD - 1500 Hrs @ 125°C
Availability: Out of Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MAL214699103E3 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MAL214699103E3
| Part Name | MAL214699103E3 |
| Manufacturer | Vishay BC |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 10 (mm) |
| Ripple Current (A) | 600 (mA) |
| Dimensions | 10 (Dia.) x 10 (mm) |
| Mounting Type | Surface Mount |
| Series | 146 CTI |
| Height | 10 (mm) |
| Capacitance | 100 (µF) |
| Tolerance | ±20 (%) |
| Voltage (V) | 50 (V dc) |
| Leakage Current (A) | 50 μA |
| Lifetime | 1000 h, 1500 h, 150000 h |
| Lead Pitch | 3.5 (mm) |
| Maximum Operating Temperature | +125 (°C) |
| Technology | Aluminium Electrolytic |
| Minimum Operating Temperature | -55 (°C) |
| Polarised | Polar |
