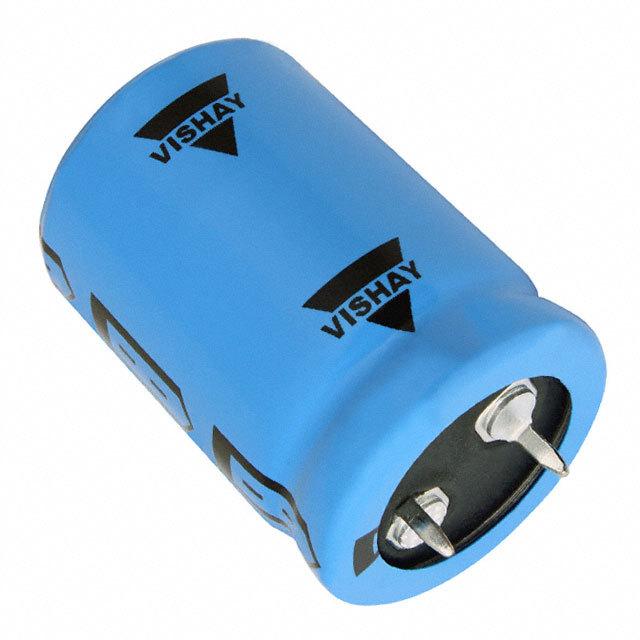

MAL225639222E3
2200 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 121mOhm 2000 Hrs @ 105°C
Availability: In Stock
Package Type: RADIAL
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MAL225639222E3 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

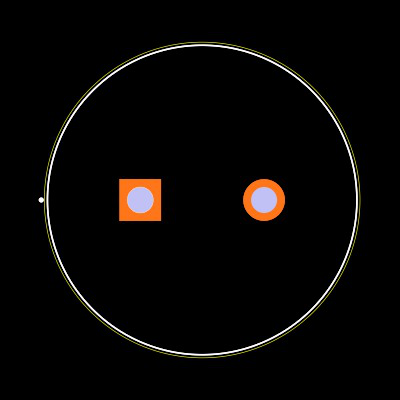

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MAL225639222E3
| Part Name | MAL225639222E3 |
| Manufacturer | Vishay |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 26 (mm) |
| Ripple Current (A) | 2.15 (A) |
| Dimensions | 26 (Dia.) x 42 (mm) |
| Mounting Type | Snap-In |
| Series | 256 |
| Equivalent Series Resistance | 121 (mΩ) |
| Height | 42 (mm) |
| Capacitance | 2200 (µF) |
| Voltage (V) | 100 (V dc) |
| Leakage Current (A) | 1.41 mA |
| Lifetime | 2000 (h) |
| Lead Pitch | 10 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
| Technology | Aluminium Electrolytic |
