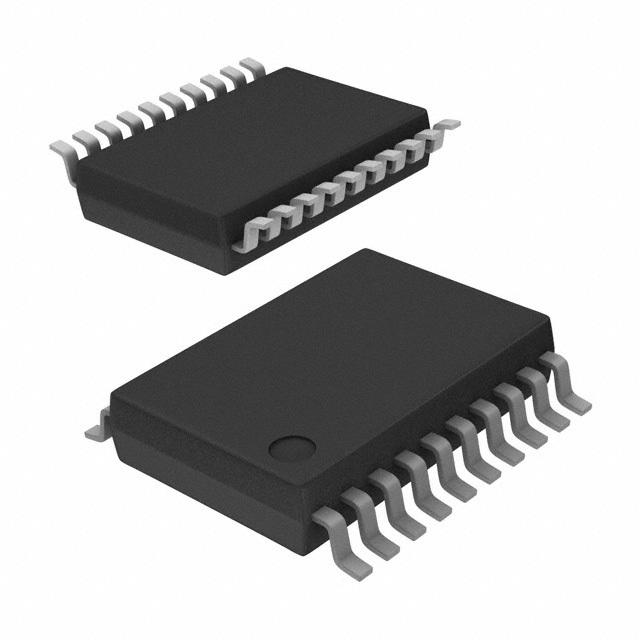

MAX3223IDB
3- to 5.5-V dual channel 250kbps RS-232 line driver/receiver with +/-15-kV ESD protection
Availability: In Stock
Package Type: SSOP-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MAX3223IDB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

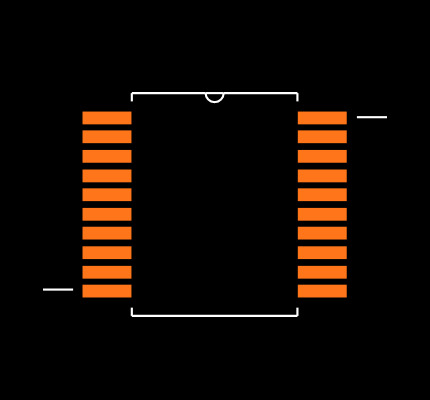

Footprint
No web preview
This Footprint is Available for

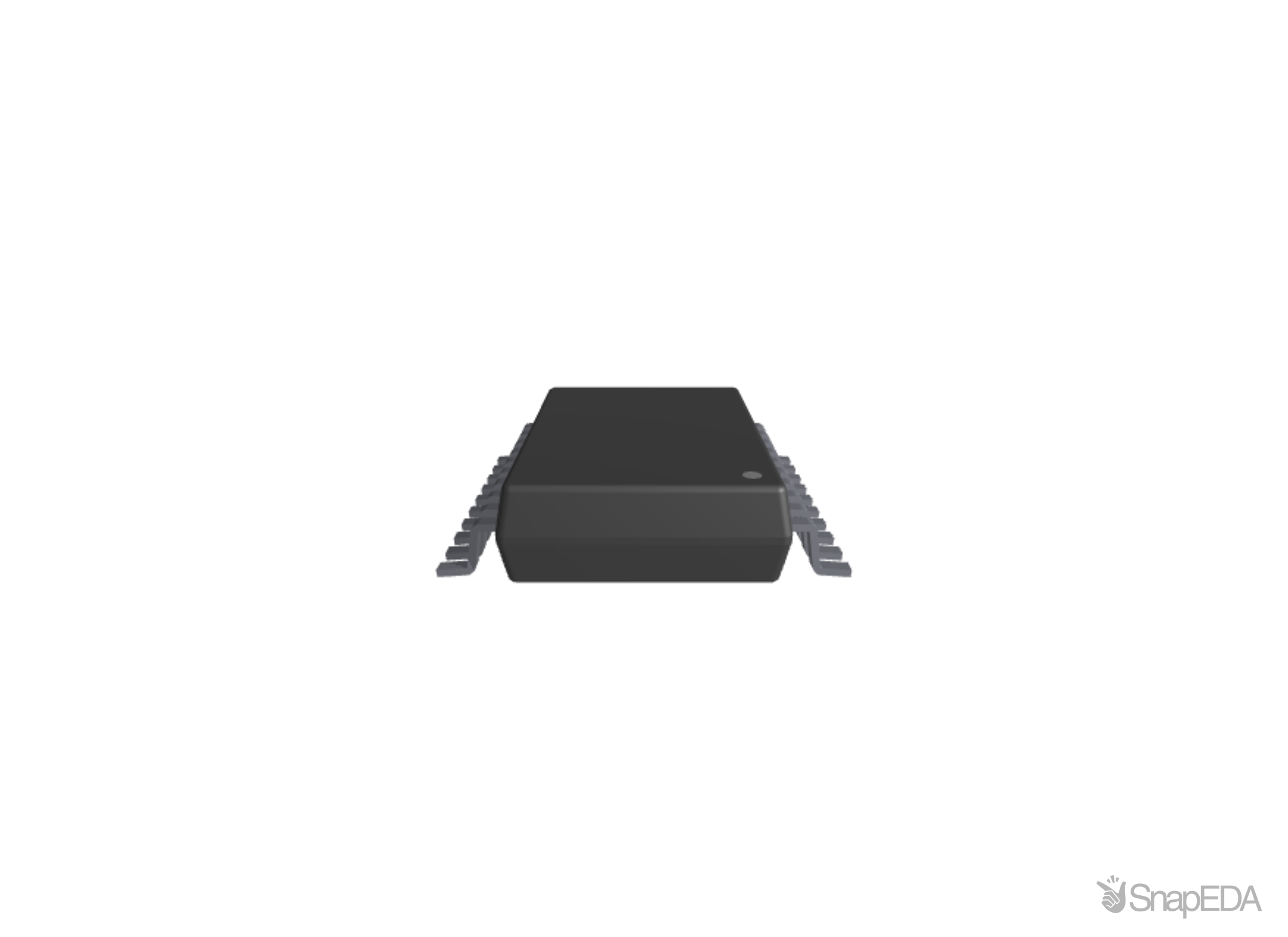

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MAX3223IDB
| Part Name | MAX3223IDB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 7.2 x 5.3 x 1.95 (mm) |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Input Type | Single Ended |
| Ic Type | Dual Line Transceiver IC |
| Number Of Transmitters | 2 |
| Pin Count | 20 |
Inventory for the MAX3223IDB by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3
|
1 x $2.83
|
Visit Site | |
|
★ Featured
|
2,695
|
157 x $1.92
|
Visit Site | |
| Texas Instruments |
2,960
|
|
Visit Site |
No issues have been reported for the MAX3223IDB
