MB6M-E3/45

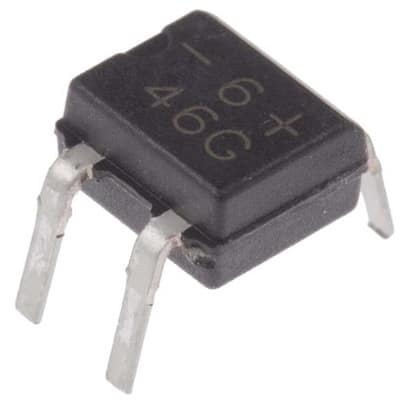

MB6M-E3/45, Bridge Rectifier, 0.8A 600V, 4-Pin MBM | Siliconix / Vishay MB6M-E3/45
Availability: Out of Stock
Package Type: DIP-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MB6M-E3/45 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

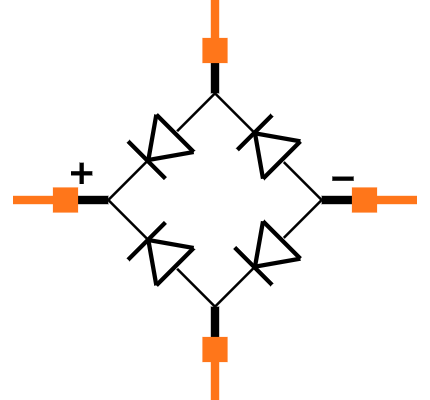

Symbol
No web preview
This Symbol is Available for

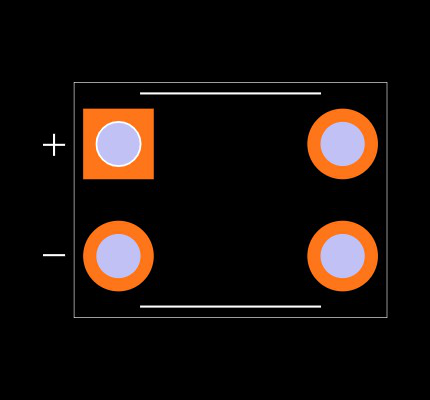

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MB6M-E3/45
| Part Name | MB6M-E3/45 |
| Manufacturer | Vishay Semiconductor |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 4.83 x 4.1 x 2.7 (mm) |
| Bridge Type | Single Phase |
| Peak Average Forward Current (A) | 800 (mA) |
| Height | 2.7 (mm) |
| Peak Reverse Current (A) | 100 (µA) |
| Width | 4.1 (mm) |
| Length | 4.83 (mm) |
| Package Type | MBM |
| Peak Reverse Repetitive Voltage (V) | 600 (V) |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage (V) | 1 (V) |
| Mounting Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 4 |
| Peak Non Repetitive Forward Surge Current (A) | 35 (A) |
