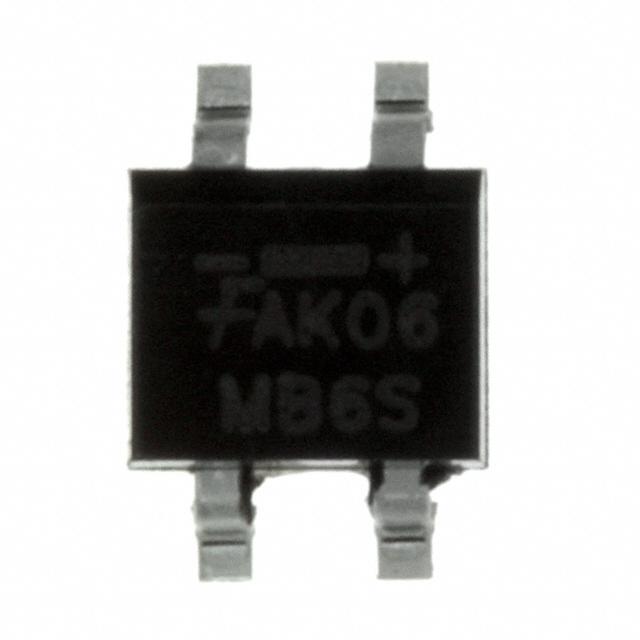

MB6S
Bridge Rectifier Single Phase Standard 600 V Surface Mount 4-SOIC
Availability: Out of Stock
Package Type: SOIC-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MB6S by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MB6S
| Part Name | MB6S |
| Manufacturer | ON |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 4.95 x 4.2 x 2.7 (mm) |
| Bridge Type | Single Phase |
| Peak Average Forward Current (A) | 500 (mA) |
| Height | 2.7 (mm) |
| Peak Reverse Current (A) | 500 (µA) |
| Width | 4.2 (mm) |
| Length | 4.95 (mm) |
| Package Type | SOIC |
| Peak Reverse Repetitive Voltage (V) | 600 (V) |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage (V) | 1 (V) |
| Mounting Type | Surface Mount |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 4 |
| Peak Non Repetitive Forward Surge Current (A) | 35 (A) |
No issues have been reported for the MB6S
