MBMK2520HR68N
INDUCTOR, WIREWOUND, 0.68UH, 2.15A; Inductance: 680nH; DC Resistance Max: 0.058ohm; Self Resonant Frequency Min: -; DC Current Rating: 2.15A; Inductor Case Style: 2.5mm x 2mm x 1.2mm; Product Range: MCOIL MB-H Series; Core Material: Metal
Availability: In Stock
Package Type: 2520
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MBMK2520HR68N by Taiyo Yuden and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

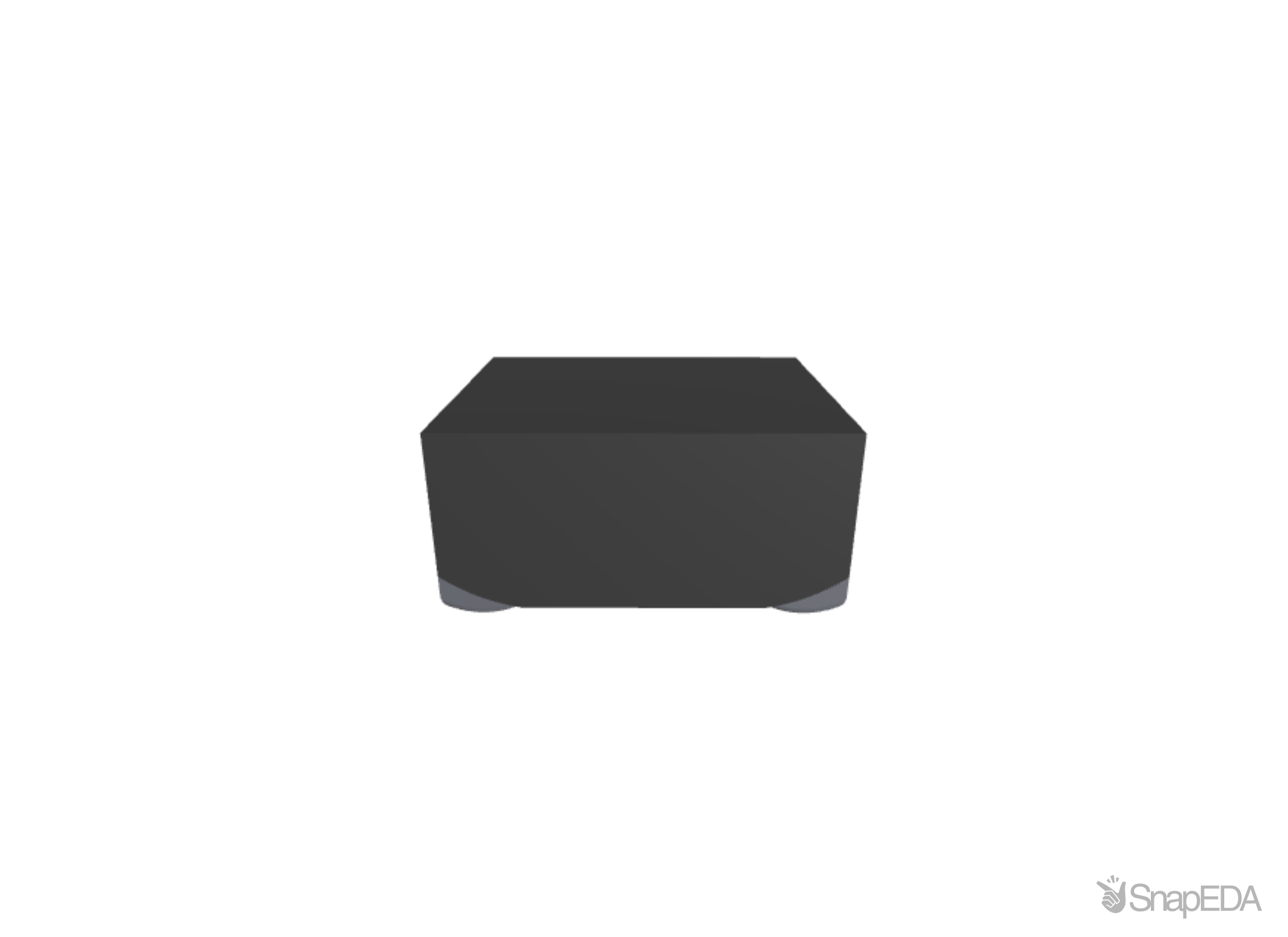

3D Model
