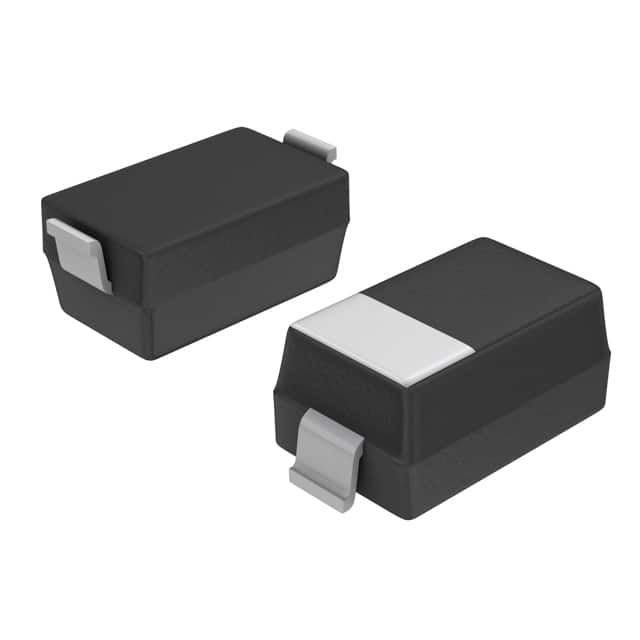

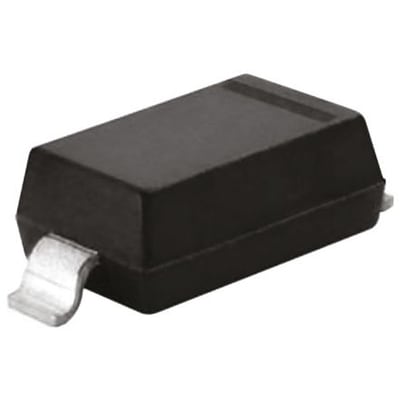

MBR0520LT3G
Diode Schottky 20 V 500mA Surface Mount SOD-123
Availability: Out of Stock
Package Type: SOD-123-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MBR0520LT3G by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

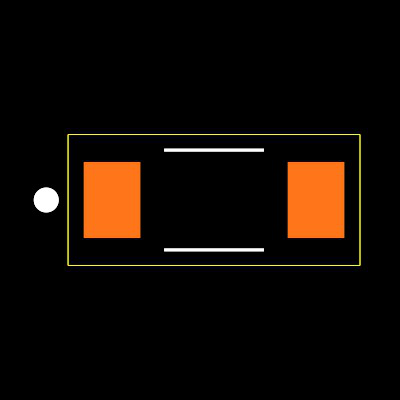

Footprint
No web preview
This Footprint is Available for

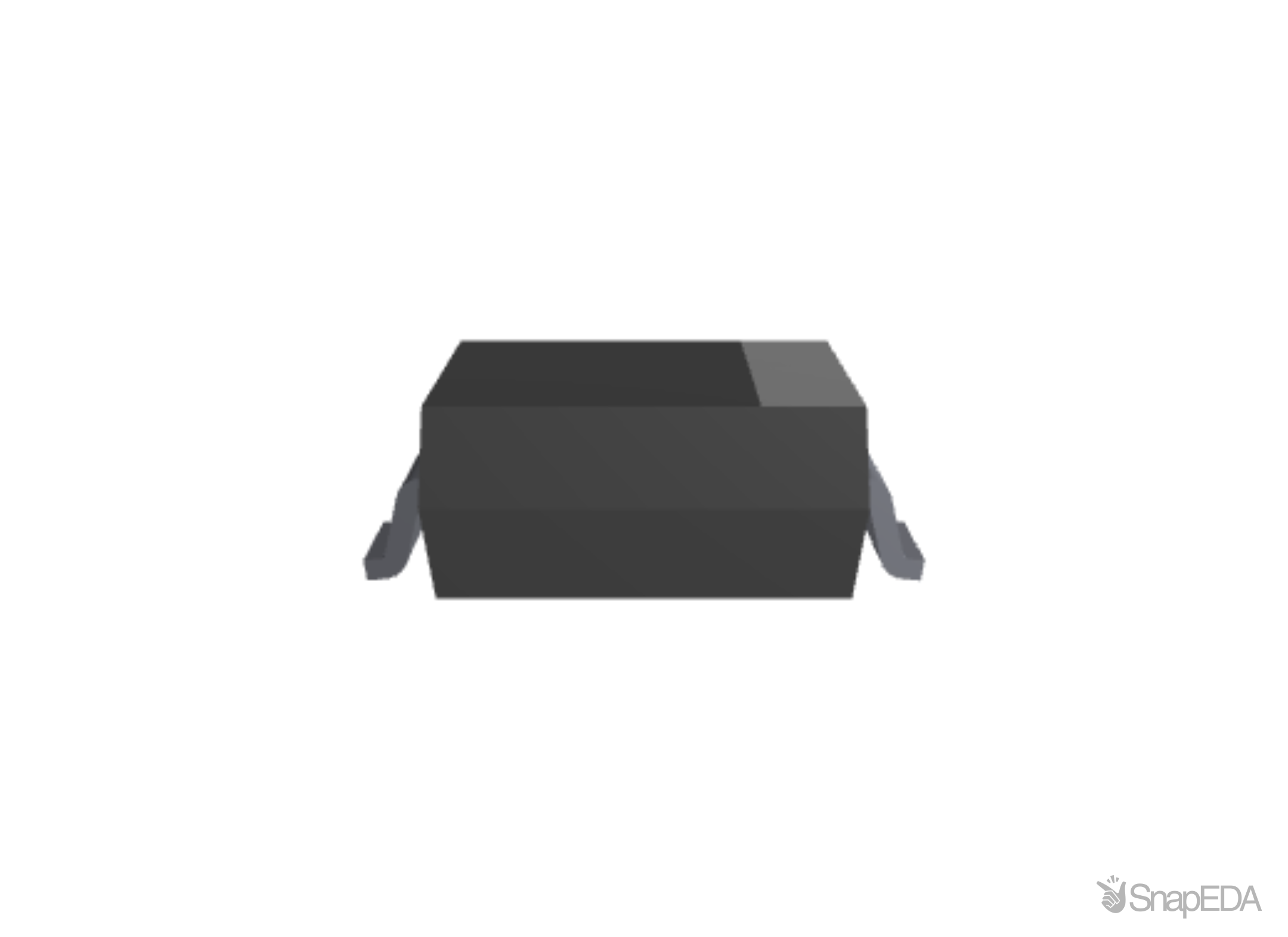

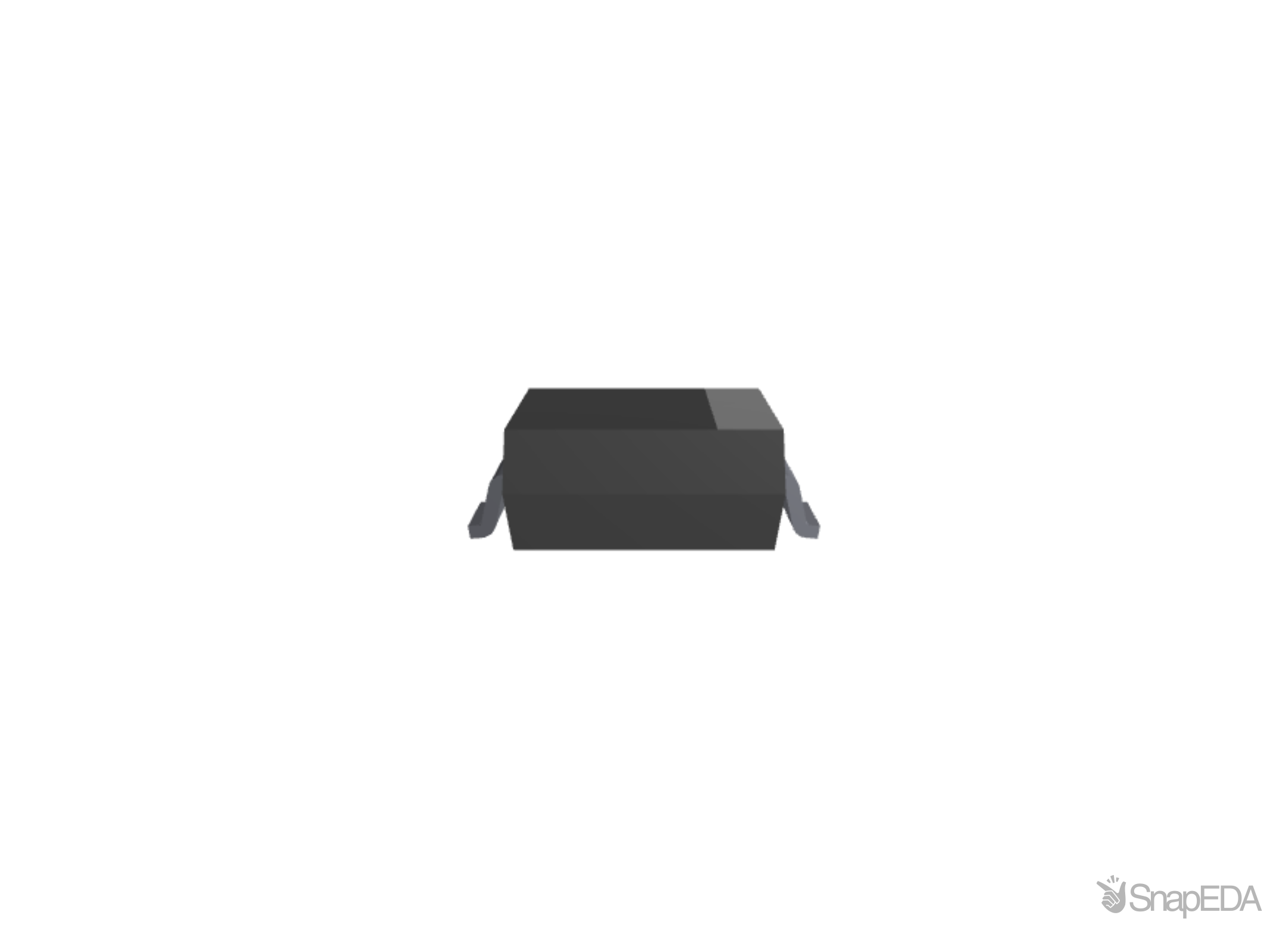

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MBR0520LT3G
| Part Name | MBR0520LT3G |
| Manufacturer | onsemi |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Maximum Continuous Forward Current (A) | 500 (mA) |
| Peak Non-Repetitive Forward Surge Current (A) | 5.5 (A) |
| Maximum Forward Voltage Drop (V) | 385 (mV) |
| Rectifier Type | Schottky Rectifier |
| Diode Technology | Schottky Barrier |
| Package Type | SOD-123 |
| Peak Reverse Repetitive Voltage (V) | 20 (V) |
| Diode Type | Schottky |
| Diode Configuration | Single |
| Pin Count | 2 |
| Number Of Elements Per Chip | 1 |
No issues have been reported for the MBR0520LT3G
