MBRF2560CT
25A, 60V, Automotive Planar Schottky
Availability: Out of Stock
Package Type: ITO-220AB-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MBRF2560CT by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

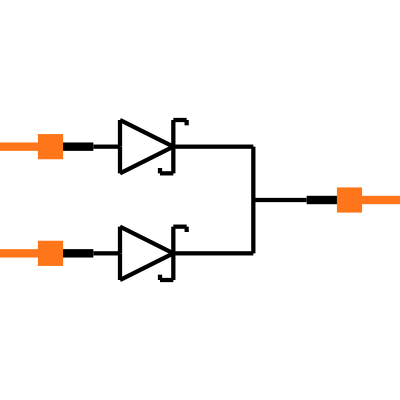

Symbol
No web preview
This Symbol is Available for

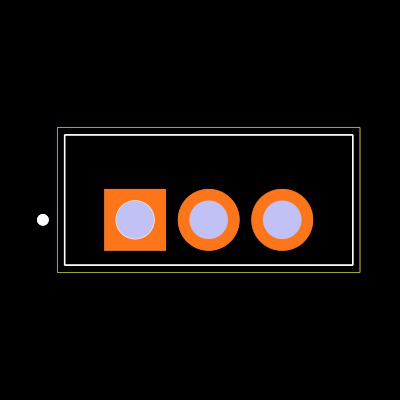

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MBRF2560CT
| Part Name | MBRF2560CT |
| Manufacturer | Taiwan Semiconductor |
| Family | Schottky |
| Maximum DC Reverse Current (A) | 0.002 |
| Case Package | ITO-220AB |
| Peak Forward Surge Current (A) | 200.0 |
| Maximum Average Forward Rectified Current (A) | 25.0 |
| Maximum Instantaneous Forward Voltage (V) | 0.75 |
| AEC-Q compliant | True |
| Technology | Standard |
| Maximum Operating Junction Temperature | 150.0 |
| RoHS | True |
| Maximum Repetitive Peak Reverse Voltage (V) | 60.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the MBRF2560CT by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Mouser |
|
|
Visit Site |
No issues have been reported for the MBRF2560CT
If you experienced any issues with the symbol or footprint, please report it.
