MBS8
0.8A, 800V, Standard Bridge Rectifier
Availability: In Stock
Package Type: TO-269AA-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MBS8 by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More

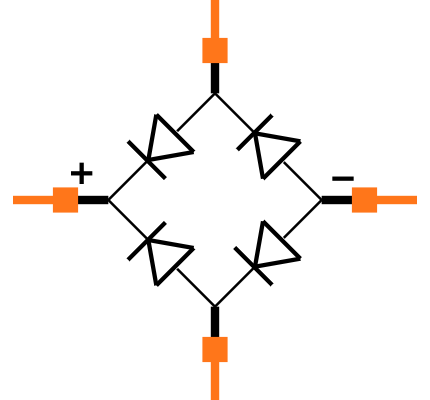

Symbol
No web preview
This Symbol is Available for

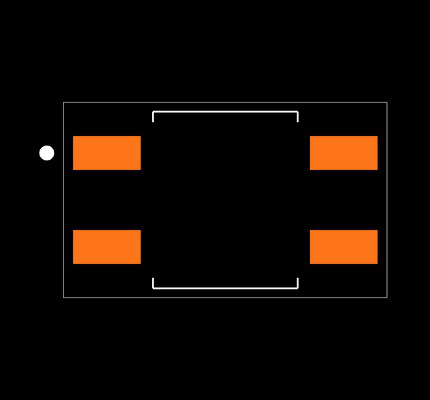

Footprint
No web preview
This Footprint is Available for

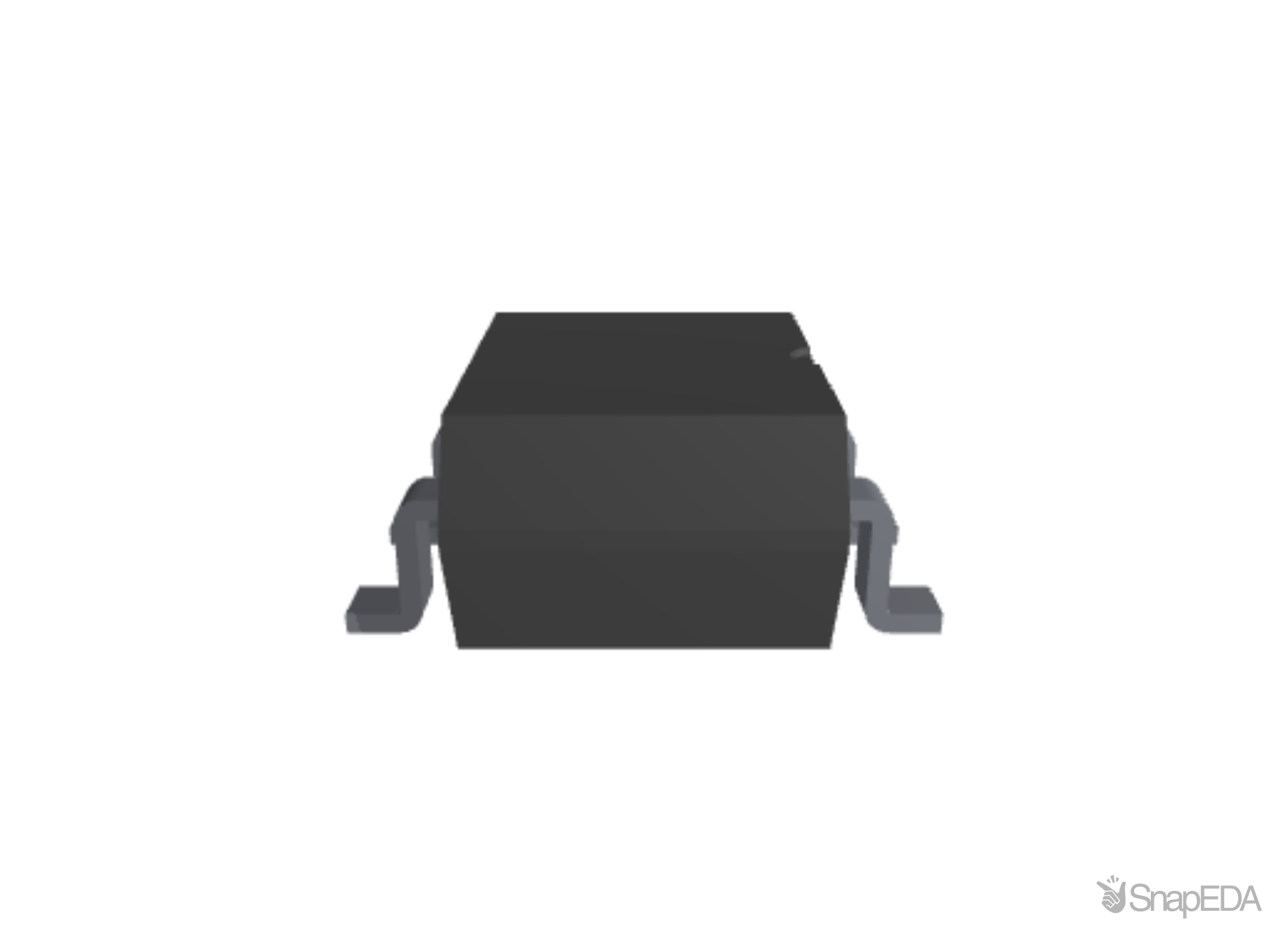

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the MBS8
| Part Name | MBS8 |
| Manufacturer | Taiwan Semiconductor |
| Family | STD GPP |
| Maximum DC Reverse Current (A) | 5e-06 |
| Package | MBS |
| Case Package | MBS |
| Peak Forward Surge Current (A) | 35.0 |
| Maximum Operating Junction Temperature | 150.0 |
| Maximum Instantaneous Forward Voltage (V) | 1.0 |
| AEC-Q compliant | True |
| Maximum Average Forward Rectified Current (A) | 0.8 |
| Maximum Repetitive Peak Reverse Voltage (V) | 800.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Bridge Type | Single Phase |
| Peak Non-Repetitive Forward Surge Current (A) | 35 (A) |
| Peak Average Forward Current (A) | 800 (mA) |
| Height | 2.7 (mm) |
| Peak Reverse Current (A) | 100 (µA) |
| Width | 4 (mm) |
| Length | 4.9 (mm) |
| Package Type | MBS |
| Peak Reverse Repetitive Voltage (V) | 800 (V) |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage (V) | 1 (V) |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 4 |
| Dimensions | 4.9 x 4 x 2.7 (mm) |
