MC14046BCP
IC, 4000 CMOS, 4046, DIP16, 15V; Frequency:1.9MHz; PLL Type:VCO; No. of Pins:16Pins; PLL Case Style:DIP; Supply Voltage Min:3V; Supply Voltage Max:18V; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; MSL:-; SVHC:No SVHC (15-Jan-2018); Base Number:14046; Device Marking:MC14046BCPG; IC Generic Number:4046; Logic Function Number:46; Logic IC Base Number:4046; Logic IC Function:Phase Locked Loop; No. of Inputs:3; Operating Temperature Range:-55°C to +125°C; Supply Current:15mA; Supply Voltage:15V; Supply Voltage Range:3V to 18V
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MC14046BCP by Motorola and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

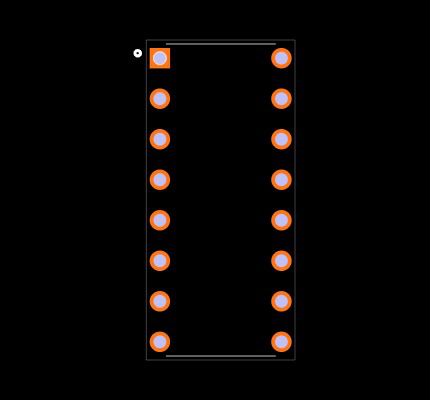

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MC14046BCP
| Part Name | MC14046BCP |
| Manufacturer | Motorola |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the MC14046BCP
If you experienced any issues with the symbol or footprint, please report it.
