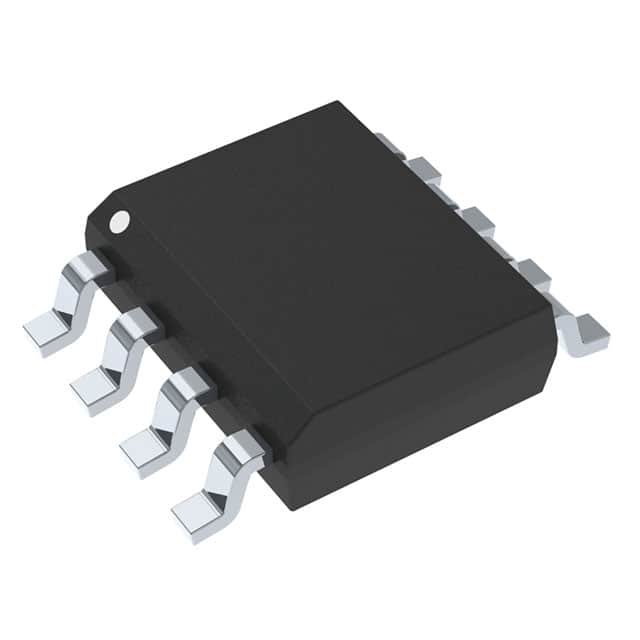

MC33078DR2G
Op Amp Dual Low Noise Amplifier ±18V 8-Pin SOIC N T/R
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MC33078DR2G by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

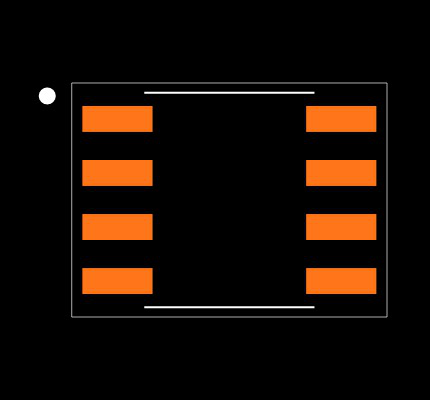

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MC33078DR2G
| Part Name | MC33078DR2G |
| Manufacturer | onsemi |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 110 dB |
| Typical Dual Supply Voltage (V) | ±12 V, ±15 V, ±9 V |
| Typical Input Voltage Noise Density (V) | 4.5 (nV/√Hz) |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 7 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | No |
| Typical Gain Bandwidth Product | 16 (MHz) |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Height | 1.5 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
Inventory for the MC33078DR2G by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15,852
|
|
Visit Site | |
|
★ Featured
|
25,298
|
|
Visit Site | |
| Onlinecomponents |
5,000
|
|
Visit Site |
No issues have been reported for the MC33078DR2G
