MC60ECA-04-BLE
MC60 is a quad-band full-featured GSM/GPRS module using LCC castellation package. With an extensive set of Internet protocols (TCP, UDP, PPP, FTP, HTTP and SSL), it has integrated the GNSS technology for satellite navigation
Availability: In Stock
Package Type: CUSTOM
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MC60ECA-04-BLE by Quectel and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

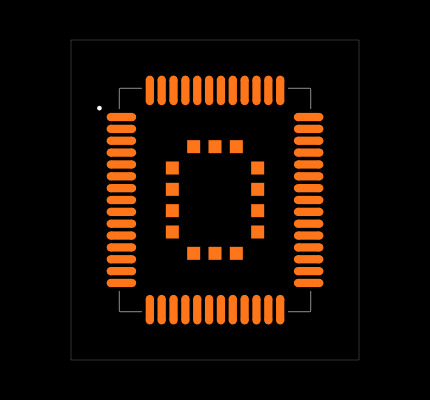

Footprint
No web preview
This Footprint is Available for

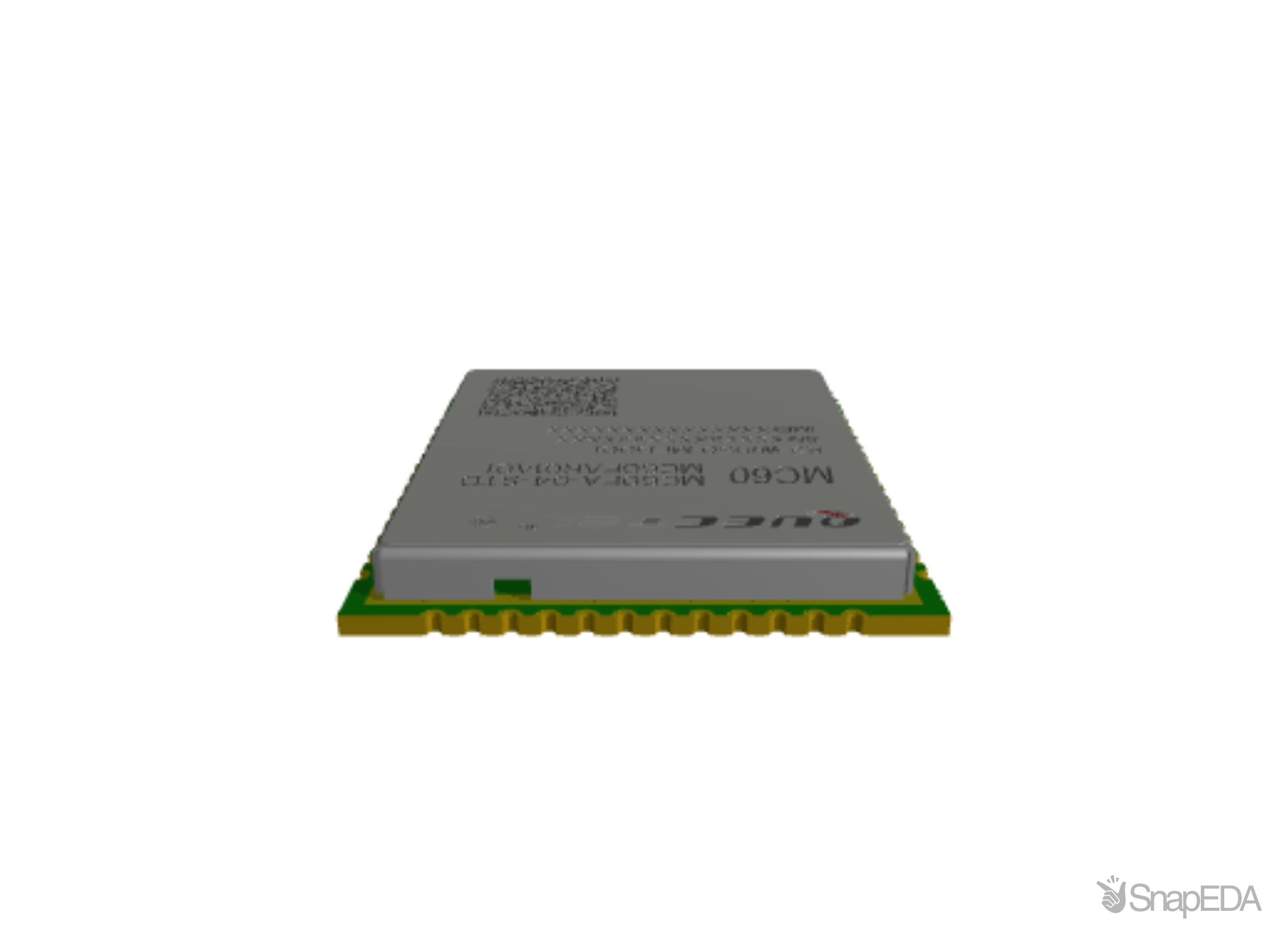

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MC60ECA-04-BLE
| Part Name | MC60ECA-04-BLE |
| Manufacturer | Quectel |
| Life Cycle Status | End of Life |
| high_runner | TRUE |
| RoHS | True |
| Product Link | https://www.quectel.com/product/MC60.htm |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Featured Device | MC60ECA-04-BLE |
| Kit Name | MC60ECA-04-BLE-EVB-KIT |
| Classification | GSM / GPRS Module |
| Rf Technology | GSM |
| Frequency | 850, 900, 1800, 1900MHz GNSS GPS/GLONASS/Galileo/BeiDou/QZSS Bluetooth BT 3.0 (SPP/ HFP-AG Profiles Supported)BT 4.0 (GATT/FMP*/PXP* Profiles Supported) (Optional) |
| Kit Classification | Evaluation Kit |
| For Use With | Quectel MC60 |
| Technology | GSM |
