MC74HC4040ANG
74HC CMOS, 74HC4040, DIP16, 6V; Logic IC Function:12-Stage Ripple Carry Binary Counter; Logic IC Family:HC; Logic IC Base Number:744040; Max Clock Frequency:40MHz; Count, Max:12; Counter Function:Binary Ripple Counter; Voltage, Supply Min:2V; Voltage, Supply Max:6V; Case Style:DIP; Operating Temperature Range:-55°C to +125°C; Base Number:74; IC Generic Number:74HC4040; Logic Function Number:4040; No. of Gates:1; No. of Inputs:1; No. of Pins:16; Supply Voltage:6V; Temp, Op. Max:125°C; Temp, Op. Min:-55°C; Termination Type:Through Hole
Availability: Out of Stock
Package Type: PDIP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MC74HC4040ANG by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

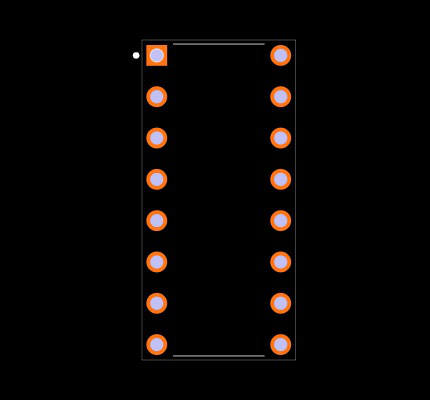

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MC74HC4040ANG
| Part Name | MC74HC4040ANG |
| Manufacturer | ON Semiconductor |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the MC74HC4040ANG
If you experienced any issues with the symbol or footprint, please report it.
