MCCOG21605B6W-FPTLWI
Character LCD Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White I²C 51.20mm x 20.70mm x 6.30mm
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCCOG21605B6W-FPTLWI by Midas and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

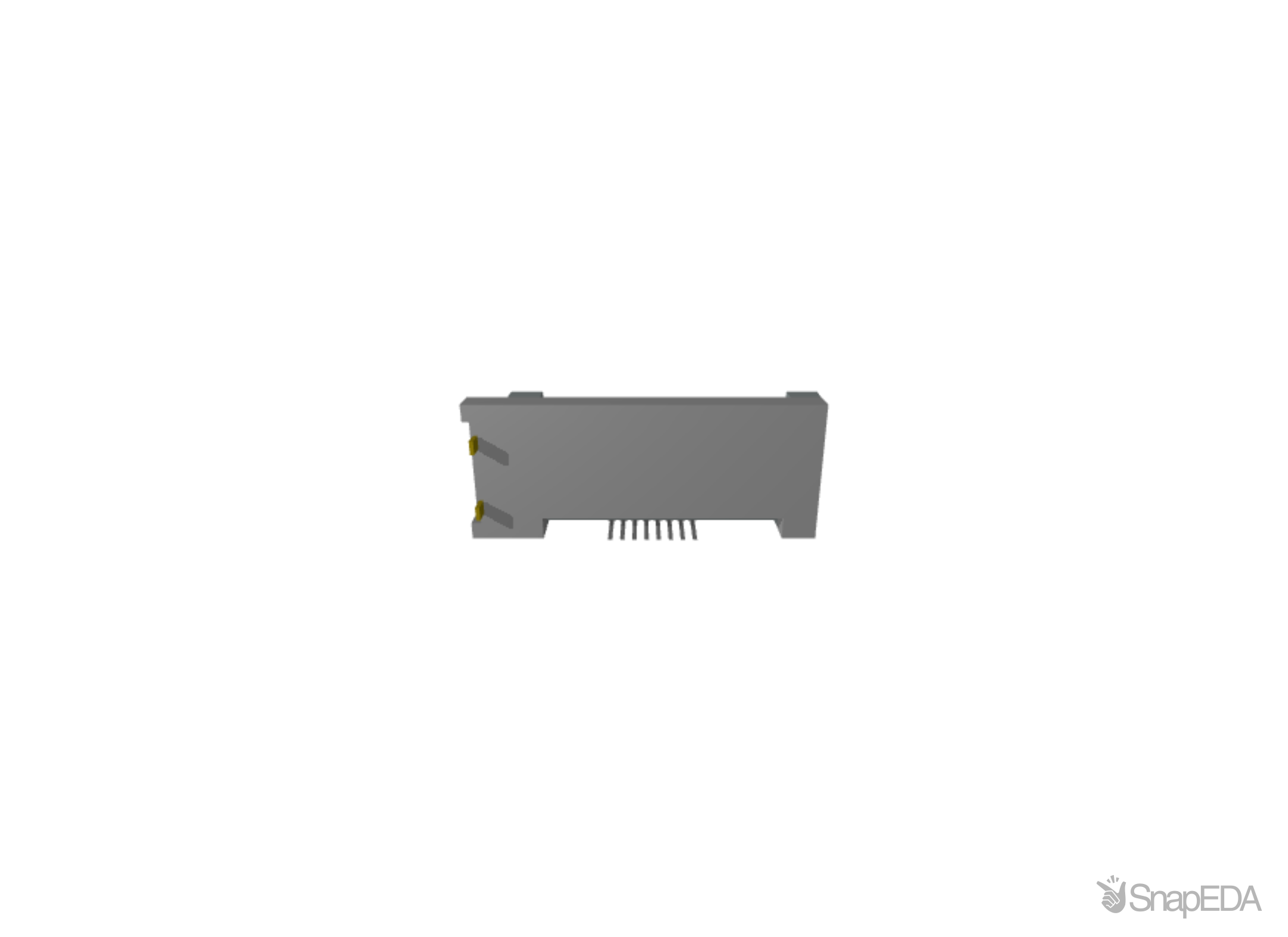

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCCOG21605B6W-FPTLWI
| Part Name | MCCOG21605B6W-FPTLWI |
| Manufacturer | Midas |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Background Colour | White |
| Viewing Area Width | 40 (mm) |
| Character Rows | 2 |
| Operating Temperature Range | -20 → +70 (°C) |
| Display Matrix Technology | FSTN |
| Viewing Area Dimensions | 40 x 10 (mm) |
| Display Mode | Transflective |
| Character Matrix | 2 Rows by 16 Characters |
| Display Type | Alphanumeric |
| Character Height | 3.8 (mm) |
| Characters Per Row | 16 |
| Driver Mounting | COG |
| Character Width | 2 (mm) |
| Backlight Type | LED |
| Viewing Area Height | 10 (mm) |
| Minimum Operating Temperature | -20 (°C) |
| External Depth | 9.3 (mm) |
| External Height | 20.7 (mm) |
| External Width | 51.2 (mm) |
| Maximum Operating Temperature | +70 (°C) |
| External Dimensions | 51.2 x 20.7 x 9.3 (mm) |
