MCP16311-E/MS
8 MSOP 3x3mm TUBE30V InputM/PFM Synchronous Buck Switching Regulator | Microchip Technology Inc. MCP16311-E/MS
Availability: In Stock
Package Type: MSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP16311-E/MS by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

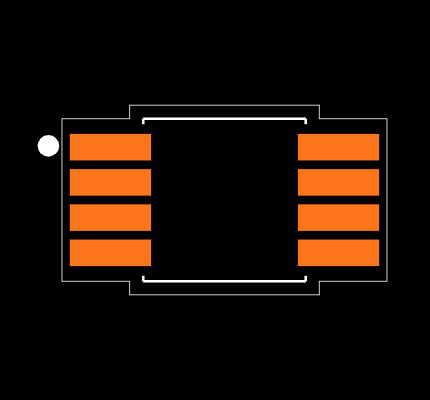

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP16311-E/MS
| Part Name | MCP16311-E/MS |
| Manufacturer | Microchip |
| Category | Integrated Circuits |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 8 |
| Number Of Outputs | 1 |
| Load Regulation | 0.25 % |
| Dimensions | 3 x 3 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Width | 3 (mm) |
| Maximum Output Current (A) | 1 (A) |
| Line Regulation | 0.01 %/V |
| Output Type | Adjustable |
| Maximum Switching Frequency | 575 kHz |
| Efficiency | 95 (%) |
| Length | 3 (mm) |
| Package Type | MSOP |
| Maximum Output Voltage (V) | 24 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 2 V |
| Height | 0.95 (mm) |
| Maximum Operating Temperature | +150 °C |
| Regulator Function | Step Down |
| Maximum Input Voltage (V) | 30 V |
| Minimum Input Voltage (V) | 4.4 V |
