MCP1702-3302E/TO
Low Iq 250mA LDO, Vin 13.2V max, Vout=3.3V | Microchip Technology Inc. MCP1702-3302E/TO
Availability: In Stock
Package Type: TO-92
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP1702-3302E/TO by Microchip Technology and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

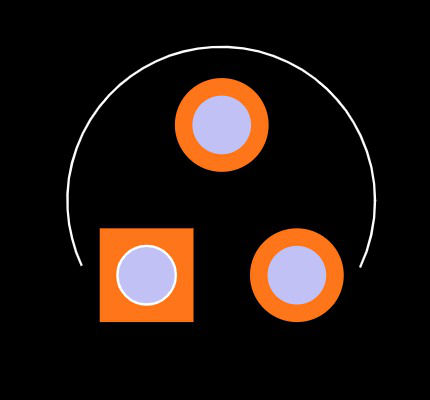

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP1702-3302E/TO
| Part Name | MCP1702-3302E/TO |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 1 % |
| Dimensions | 4.71 x 3.62 x 4.62 (mm) |
| Mounting Type | Through Hole |
| Quiescent Current (A) | 0.002 (mA) |
| Maximum Operating Temperature | +125 °C |
| Line Regulation | 0.1 %/V |
| Regulator Type | Low Dropout Voltage |
| Output Type | Fixed |
| Height | 4.62 (mm) |
| Width | 3.62 (mm) |
| Length | 4.71 (mm) |
| Output Voltage (V) | 3.3 V |
| Package Type | TO-92 |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 2.7 V |
| Maximum Output Current (A) | 250 (mA) |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 13.2 V |
| Accuracy | ±0.4 (%) |
Inventory for the MCP1702-3302E/TO by Microchip Technology from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,073
|
|
Visit Site | |
|
★ Featured
|
3,000
|
440 x $0.79
|
Visit Site | |
| Onlinecomponents |
1,000
|
|
Visit Site | |
| Verical |
772
|
67 x $0.44
|
Visit Site |
No issues have been reported for the MCP1702-3302E/TO
If you experienced any issues with the symbol or footprint, please report it.
