Design electronics in a snap

Download free symbols, footprints, and 3D models for millions of electronic components. Compatible with all major PCB tools.

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then Request Now

MCP1702T-3302E/CB

Name: MCP1702T-3302E/CB
Brand: Microchip

Pwr Sply Func,Voltage Regulator,LDO, Positive Voltage Out,SOT-23A,IS 2uA,VO 3.3V | Microchip Technology Inc. MCP1702T-3302E/CB

Availability: Out of Stock

Package Type: SOT-23-3

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the MCP1702T-3302E/CB by Microchip and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

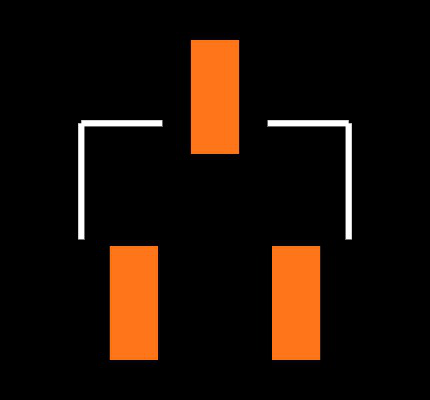

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the MCP1702T-3302E/CB

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the MCP1702T-3302E/CB

Part Name	MCP1702T-3302E/CB
Manufacturer	Microchip
Category	Electronic Components
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Polarity	Positive
Number Of Outputs	1
Load Regulation	1 %
Dimensions	3.1 x 1.8 x 1.3 (mm)
Line Regulation	0.1 %/V
Maximum Output Current (A)	250 (mA)
Accuracy	±0.4 (%)
Regulator Type	Low Dropout Voltage
Output Type	Fixed
Height	1.3 (mm)
Width	1.8 (mm)
Length	3.1 (mm)
Output Voltage (V)	3.3 V
Package Type	SOT-23A
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Minimum Input Voltage (V)	2.7 V
Maximum Operating Temperature	+125 °C
Pin Count	3
Maximum Input Voltage (V)	13.2 V
Quiescent Current (A)	0.002 (mA)

We could not find inventory or pricing across major distributors for the MCP1702T-3302E/CB by Microchip.
