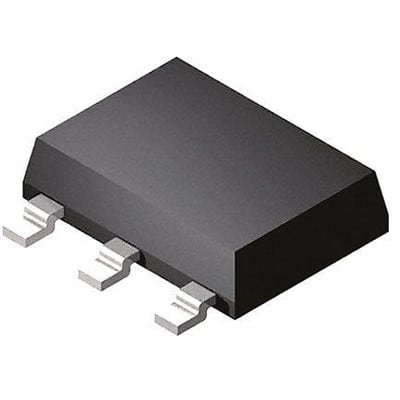

MCP1703T-3302E/DB
MCP1703T-3302E/DB,LDOVoltage Regulator,200mA,3.3V,2.7 to 16Vin,3+Tab-Pin SOT-223 | Microchip Technology Inc. MCP1703T-3302E/DB
Availability: In Stock
Package Type: SOT-223-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP1703T-3302E/DB by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP1703T-3302E/DB
| Part Name | MCP1703T-3302E/DB |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 2.5 % |
| Dimensions | 6.7 x 3.7 x 1.7 (mm) |
| Mounting Type | Surface Mount |
| Quiescent Current (A) | 5 (µA) |
| Maximum Operating Temperature | +125 °C |
| Regulator Type | Low Dropout Voltage |
| Output Type | Fixed |
| Height | 1.7 (mm) |
| Width | 3.7 (mm) |
| Length | 6.7 (mm) |
| Output Voltage (V) | 3.3 V |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -40 °C |
| Power Rating | 1.35 (W) |
| Minimum Input Voltage (V) | 2.7 V |
| Maximum Output Current (A) | 200 (mA) |
| Pin Count | 3+Tab |
| Maximum Input Voltage (V) | 16 V |
| Line Regulation | 0.3 %/V |
Inventory for the MCP1703T-3302E/DB by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
17,196
|
|
Visit Site | |
|
★ Featured
|
667
|
|
Visit Site | |
|
★ Featured
|
12,000
|
550 x $0.63
|
Visit Site | |
| Arrow Electronics |
9,719
|
|
Visit Site | |
| Onlinecomponents |
12,900
|
|
Visit Site | |
| Verical |
2,250
|
|
Visit Site |
No issues have been reported for the MCP1703T-3302E/DB
If you experienced any issues with the symbol or footprint, please report it.
