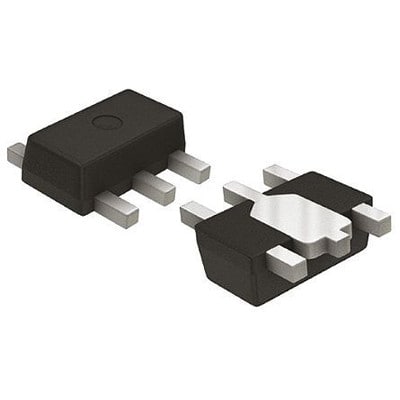

MCP1804T-5002I/MT
150mA LDO, Vin 28V max, Vout =5.0V5 SOT-89 T/R | Microchip Technology Inc. MCP1804T-5002I/MT
Availability: In Stock
Package Type: SOT-89
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP1804T-5002I/MT by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP1804T-5002I/MT
| Part Name | MCP1804T-5002I/MT |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 275 mV |
| Dimensions | 4.6 x 2.6 x 1.6 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Line Regulation | 0.3 %/V |
| Quiescent Current (A) | 125 (µA) |
| Output Type | Fixed |
| Height | 1.6 (mm) |
| Width | 2.6 (mm) |
| Length | 4.6 (mm) |
| Output Voltage (V) | 5 V |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 2 V |
| Maximum Output Current (A) | 150 (mA) |
| Pin Count | 5 |
| Maximum Input Voltage (V) | 28 V |
| Accuracy | ±2 (%) |
Inventory for the MCP1804T-5002I/MT by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,052
|
|
Visit Site | |
|
★ Featured
|
1,945
|
|
Visit Site | |
|
★ Featured
|
19,000
|
725 x $0.48
|
Visit Site | |
| Onlinecomponents |
2,000
|
|
Visit Site | |
| Verical |
1,500
|
|
Visit Site |
No issues have been reported for the MCP1804T-5002I/MT
