MCP3424-E/ST
Microchip MCP3424-E/ST, 18 bit Serial ADC, Differential Input, 14-Pin TSSOP | Microchip Technology Inc. MCP3424-E/ST
Availability: In Stock
Package Type: TSSOP-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP3424-E/ST by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

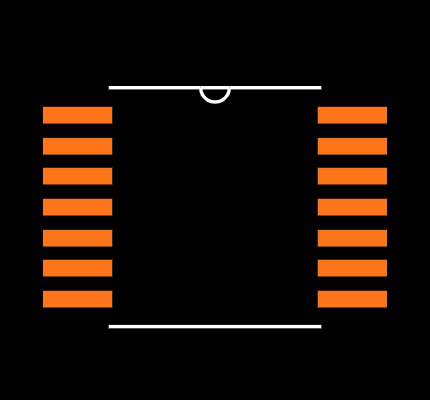

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP3424-E/ST
| Part Name | MCP3424-E/ST |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Adcs | 4 |
| Integral Nonlinearity Error | 35 (ppm FSR) |
| Dimensions | 5 x 4.4 x 0.9 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | 85 °C |
| Pin Count | 14 |
| Input Signal Type | Differential, Single Ended |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | TSSOP |
| Architecture | Delta Sigma |
| Minimum Operating Temperature | -40 °C |
| Sampling Rate | 0.004 (ksps) |
| Input Type | Voltage |
| Resolution | 18-bit |
| Digital Interface Type | Serial (I2C) |
