MCP4811-E/MS

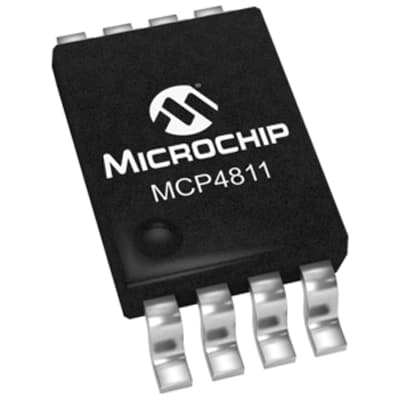

Microchip MCP4811-E/MS, 10 bit Serial DAC, 8-Pin MSOP | Microchip Technology Inc. MCP4811-E/MS
Availability: In Stock
Package Type: MSOP-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP4811-E/MS by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

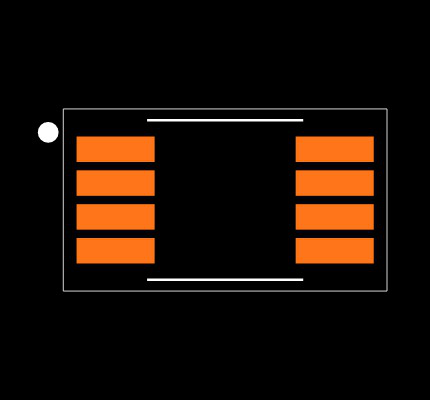

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP4811-E/MS
| Part Name | MCP4811-E/MS |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Polarity | Bipolar |
| Integral Nonlinearity Error | 3.5 (LSB) |
| Dimensions | 3 x 3 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Number Of Dac Channels | 1 |
| Power Supply Type | Single |
| Maximum Settling Time | 4.5 (µs) |
| Resolution | 10 bit |
| Pin Count | 8 |
| Typical Single Supply Voltage (V) | 2.7 → 5.5 V |
| Full Scale Error | ±2 (%FSR) |
| Package Type | MSOP |
| Architecture | Resistor String |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Voltage Reference (V) | Internal |
| Digital Interface Type | Serial (SPI) |
Inventory for the MCP4811-E/MS by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
105
|
|
Visit Site | |
|
★ Featured
|
281
|
|
Visit Site | |
|
★ Featured
|
1,430
|
N/A | Visit Site | |
| Verical |
32
|
28 x $2.74
|
Visit Site |
No issues have been reported for the MCP4811-E/MS
