MCP4821-E/MS

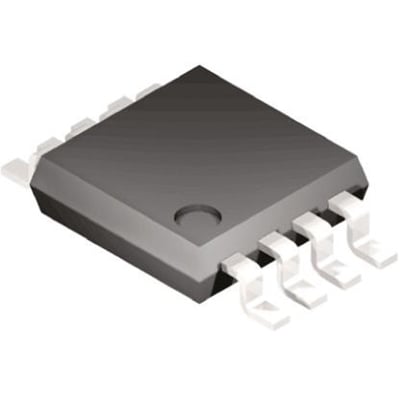

Microchip MCP4821-E/MS, 12 bit Serial DAC, 8-Pin MSOP | Microchip Technology Inc. MCP4821-E/MS
Availability: In Stock
Package Type: MSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP4821-E/MS by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP4821-E/MS
| Part Name | MCP4821-E/MS |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Integral Nonlinearity Error | 12 (LSB) |
| Dimensions | 3 x 3 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Number Of Dac Channels | 1 |
| Power Supply Type | Single |
| Minimum Operating Temperature | -40 °C |
| Maximum Settling Time | 4.5 (µs) |
| Resolution | 12 bit |
| Pin Count | 8 |
| Typical Single Supply Voltage (V) | 2.7 to 5.5 V |
| Full Scale Error | ±2 (%FSR) |
| Package Type | MSOP |
| Architecture | Resistor String |
| Output Polarity | Bipolar |
| Maximum Operating Temperature | 125 °C |
| Voltage Reference (V) | Internal |
| Digital Interface Type | Serial (SPI) |
Inventory for the MCP4821-E/MS by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
676
|
|
Visit Site | |
|
★ Featured
|
3,770
|
88 x $3.43
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
153
|
|
Visit Site | |
| Farnell UK |
15
|
|
Visit Site | |
| Newark |
15
|
|
Visit Site | |
| Onlinecomponents |
975
|
|
Visit Site | |
| RS UK |
100
|
|
Visit Site | |
| Verical |
900
|
|
Visit Site | |
| element14 Singapore |
15
|
|
Visit Site |
No issues have been reported for the MCP4821-E/MS
