MCP601-E/P
Microchip MCP601-E/P Op Amp, 2.8MHz Rail-Rail, 2.7 to 6 V, 8-Pin PDIP | Microchip Technology Inc. MCP601-E/P
Availability: In Stock
Package Type: DIP-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP601-E/P by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

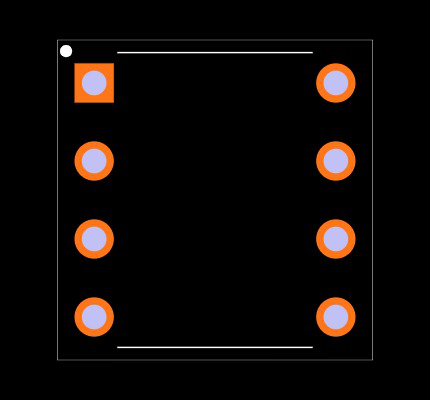

Footprint
No web preview
This Footprint is Available for

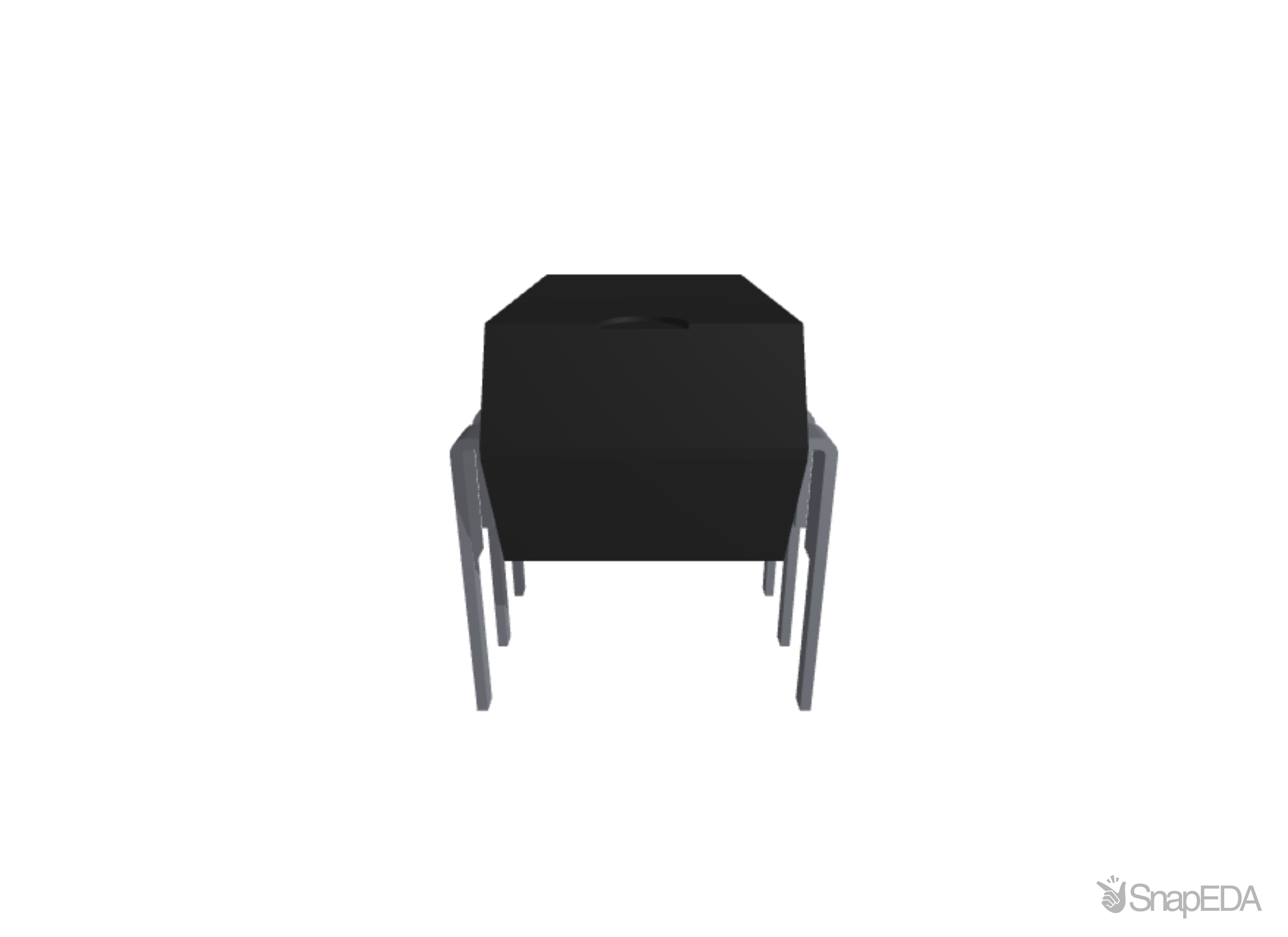

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP601-E/P
| Part Name | MCP601-E/P |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 115 dB |
| Typical Input Voltage Noise Density (V) | 29 (nV/√Hz) |
| Dimensions | 0.4 x 0.28 x 0.195 (in) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 2.3 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | Rail to Rail Output |
| Typical Gain Bandwidth Product | 2.8 (MHz) |
| Typical Single Supply Voltage (V) | 2.7 → 6 V |
| Width | 0.28 (in) |
| Length | 10.16 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | General Purpose |
| Height | 4.95 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
