MCP6284-E/P
IC,Op Amp,Operating Voltage, 2.2 - 6.0V,Outputs,4,GBWP,5000kHz,PDIP-14 | Microchip Technology Inc. MCP6284-E/P
Availability: In Stock
Package Type: DIP-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP6284-E/P by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

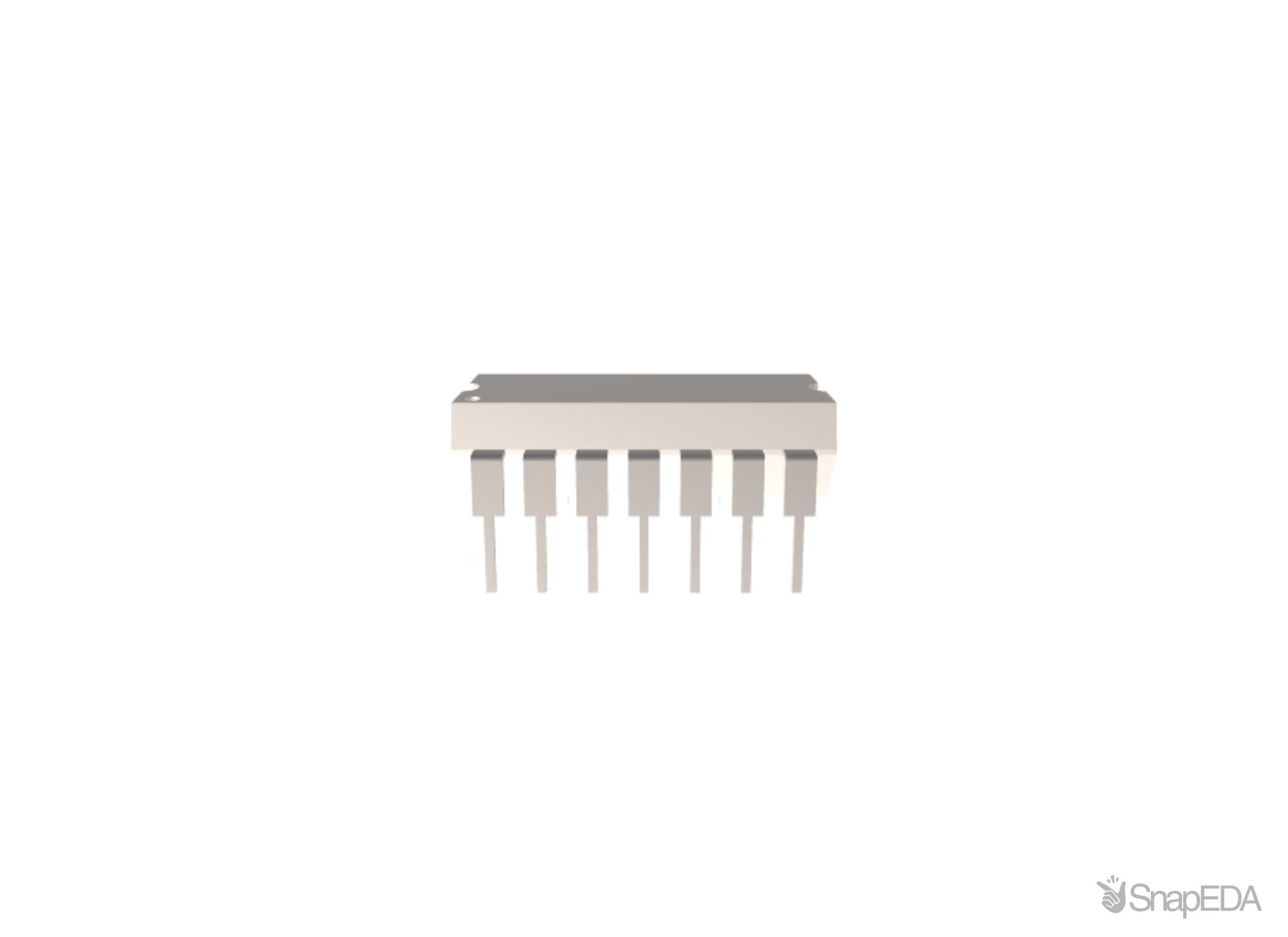

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP6284-E/P
| Part Name | MCP6284-E/P |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 19.05 x 6.35 x 3.3 (mm) |
| Typical Slew Rate | 2.5 (V/µs) |
| Typical Gain Bandwidth Product | 5 (MHz) |
| Width | 6.35 (mm) |
| Input Offset Current (A) | 1 (pA) |
| Power Supply Type | Single |
| Rail To Rail | Rail to Rail Input/Output |
| Maximum Operating Frequency | 1 kHz |
| Package Type | PDIP |
| Typical Voltage Gain (V) | 110 dB |
| Maximum Operating Temperature | +125 °C |
| Length | 19.05 (mm) |
| Pin Count | 14 |
| Offset Voltage (V) | ±5 (mV) |
| Typical Input Voltage Noise Density (V) | 16 (nV/√Hz) |
| Mounting Type | Through Hole |
| Output Current (A) | ±25 (Short Circuit) mA |
| Input Voltage Range (V) | 2.2 → 6 V |
| Number Of Channels Per Chip | 4 |
| Height | 3.3 (mm) |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | General Purpose |
| Maximum Input Voltage (V) | 6 V |
| Minimum Input Voltage (V) | 2.2 V |
Inventory for the MCP6284-E/P by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
65
|
|
Visit Site | |
|
★ Featured
|
8,200
|
30 x $11.82
|
Visit Site |
No issues have been reported for the MCP6284-E/P
