MCP6292-E/P
Microchip MCP6292-E/P, Dual Op Amp, 10MHz Rail-Rail, 8-Pin PDIP | Microchip Technology Inc. MCP6292-E/P
Availability: In Stock
Package Type: DIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP6292-E/P by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

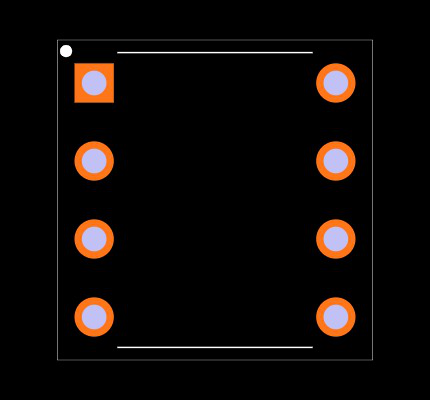

Footprint
No web preview
This Footprint is Available for

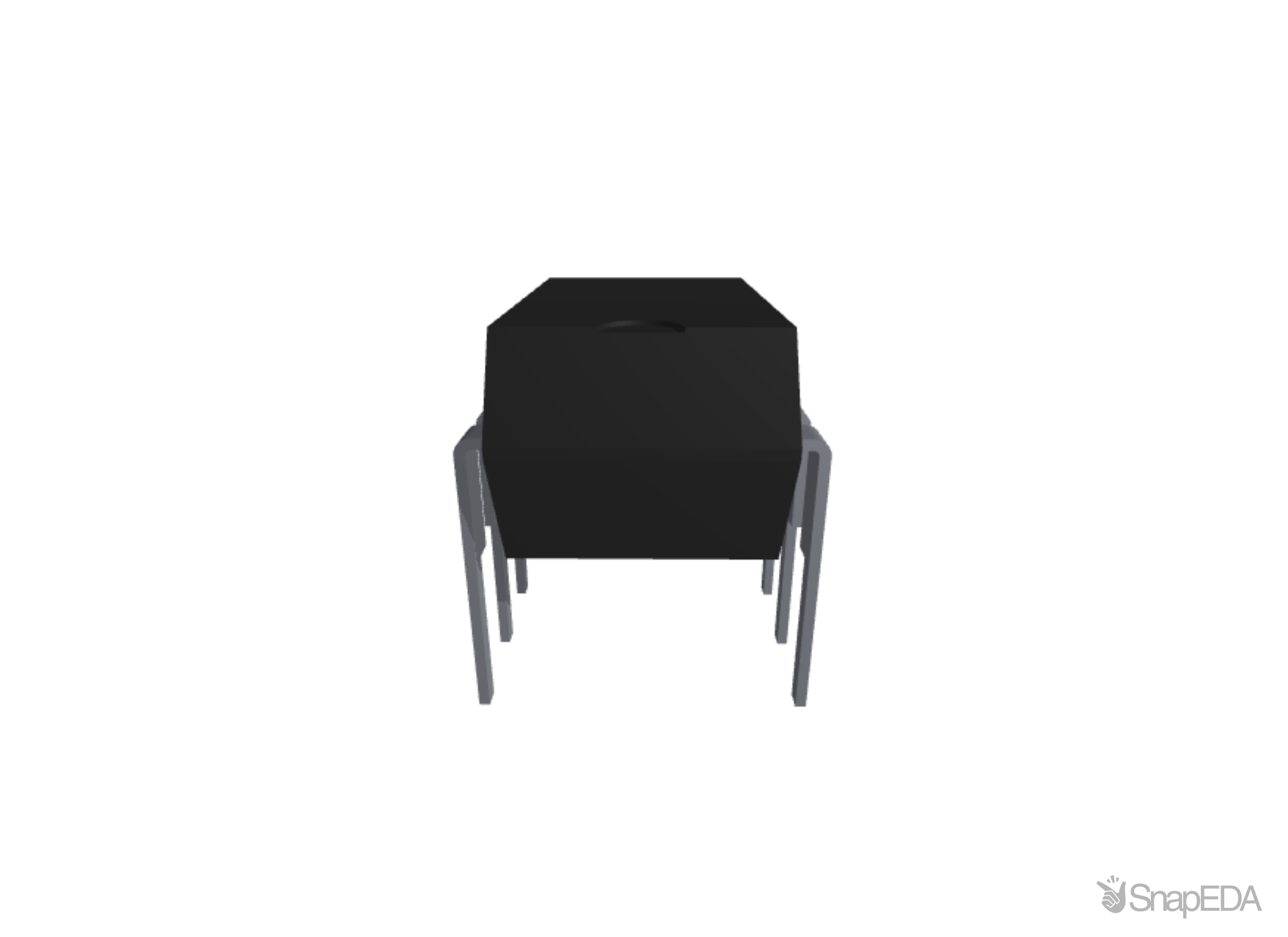

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP6292-E/P
| Part Name | MCP6292-E/P |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 110 dB |
| Typical Input Voltage Noise Density (V) | 8.7 (nV/√Hz) |
| Dimensions | 9.27 x 6.35 x 3.3 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 7 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | Rail to Rail Input/Output |
| Typical Gain Bandwidth Product | 10 (MHz) |
| Typical Single Supply Voltage (V) | 3 V, 5 V |
| Width | 6.35 (mm) |
| Length | 9.27 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | General Purpose |
| Height | 3.3 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
