MCP73832T-2ACI/MC

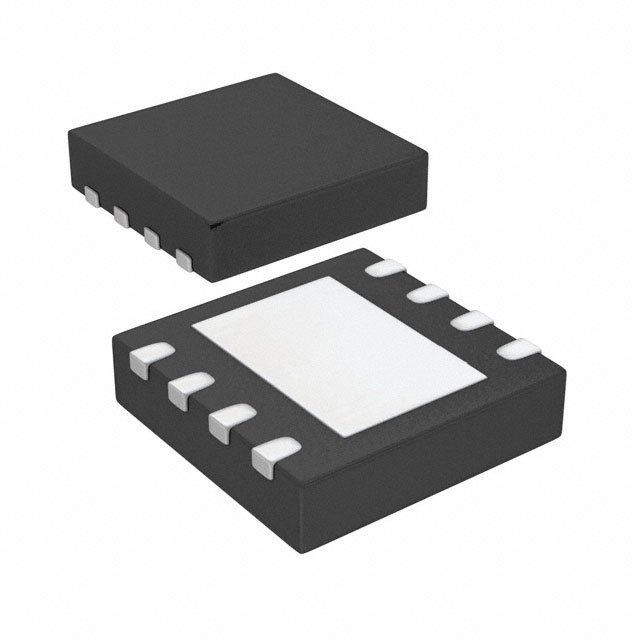

Charge Controller Li-Ion/Li-Pol 15mA to 500mA 4.2V 8-Pin DFN EP T/R | Microchip Technology Inc. MCP73832T-2ACI/MC
Availability: Out of Stock
Package Type: DFN-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP73832T-2ACI/MC by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

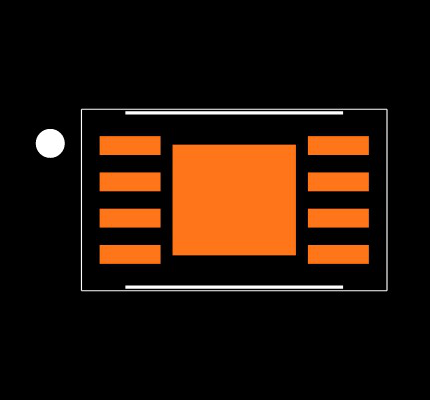

BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP73832T-2ACI/MC
| Part Name | MCP73832T-2ACI/MC |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2 x 3 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Minimum Output Voltage (V) | 4.16 V |
| Height | 0.95 (mm) |
| Typical Operating Supply Voltage (V) | 6 V |
| Width | 3 (mm) |
| Length | 2 (mm) |
| Package Type | DFN |
| Maximum Output Voltage (V) | 4.53 V |
| Minimum Operating Temperature | -40 °C |
| Ic Type | Battery Charge Controller IC |
| Battery Type | Lithium-Ion, Lithium-Polymer |
| Maximum Output Current (A) | 10 (mA) |
| Pin Count | 8 |
