MCP9700-E/TO
Microchip Temperature Sensor 3-Pin TO-92, -40 - +125 degC | Microchip Technology Inc. MCP9700-E/TO
Availability: Out of Stock
Package Type: TO-92
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP9700-E/TO by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

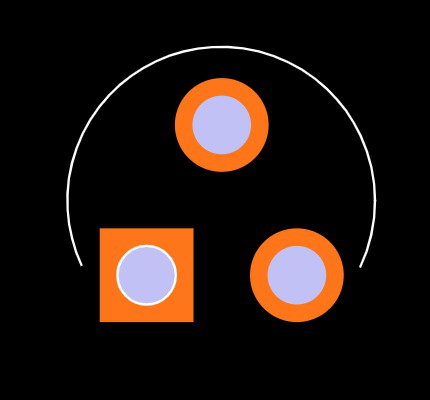

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP9700-E/TO
| Part Name | MCP9700-E/TO |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 4.71 x 3.62 x 4.62 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Operating Temperature Range | -40 to +125 °C |
| Sensor Gain | 10 (mV/°C) |
| Minimum Operating Supply Voltage (V) | 2.3 V |
| Output Type | Voltage |
| Height | 4.62 (mm) |
| Width | 3.62 (mm) |
| Length | 4.71 (mm) |
| Package Type | TO-92 |
| Interface Type | Analogue |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Accuracy | ±1 (°C) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Sensor Function | Temperature |
No issues have been reported for the MCP9700-E/TO
