MCP98243-BE/ST
Microchip MCP98243-BE/ST Temperature Sensor 8-Pin TSSOP, -40 - +125 degC | Microchip Technology Inc. MCP98243-BE/ST
Availability: Out of Stock
Package Type: TSSOP-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP98243-BE/ST by Microchip Technology and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

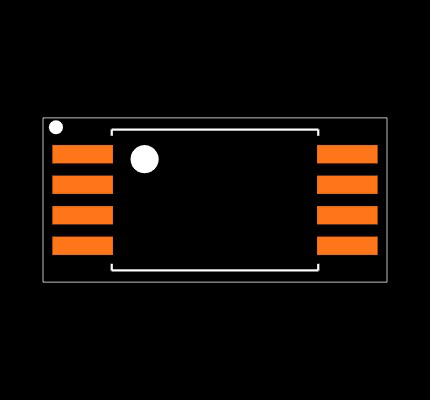

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP98243-BE/ST
| Part Name | MCP98243-BE/ST |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3 x 4.4 x 1 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Operating Temperature Range | -40 to +125 °C |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Output Type | Digital |
| Height | 1 (mm) |
| Width | 4.4 (mm) |
| Length | 3 (mm) |
| Package Type | TSSOP |
| Sensor Function | Temperature |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Accuracy | ±3 (°C) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
| Interface Type | Serial-I2C, SMBus |
No issues have been reported for the MCP98243-BE/ST
