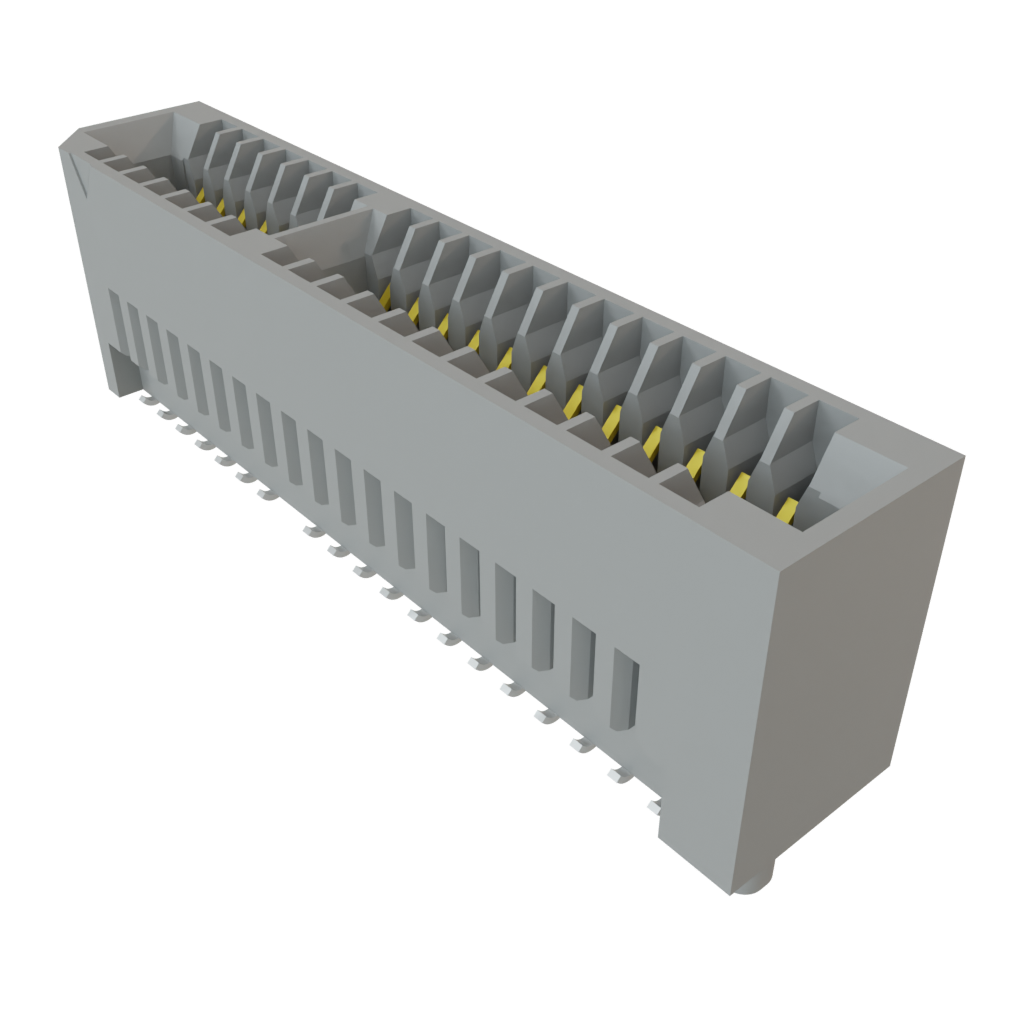

MECF-20-01-L-DV
SnapVerified
40 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm) Black
Availability: In Stock
Country of Origin: Vietnam
CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MECF-20-01-L-DV by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MECF-20-01-L-DV
| Part Name | MECF-20-01-L-DV |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | MECF |
| Country of Origin | Vietnam |
| Packaging | Tube |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | MECF |
| Current Rating (A) | 3.5 (A) |
| Minimum Operating Temperature | -55 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 280 V ac |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Solder |
| Length | 29.51 (mm) |
| Housing Material | Black Liquid Crystal Polymer |
| Width | 5.6 (mm) |
| Depth | 8.5 (mm) |
| Number Of Rows | 2 |
| Contact Plating | Gold over Nickel, Tin over Nickel |
| Pitch | 1.27 (mm) |
| Number Of Contacts | 40 |
| Keying Way | Yes |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Beryllium Copper |
