MECT-110-01-M-D-RA1

Name: MECT-110-01-M-D-RA1
Brand: Samtec Inc.

SnapVerified

20 Position SFP+ Receptacle Connector Solder Surface Mount, Right Angle

Availability: In Stock

Country of Origin: Costa Rica

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Get this part

Arrival in under 3 days

Shop on Samtec.com

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the MECT-110-01-M-D-RA1 by Samtec Inc. and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Samples

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

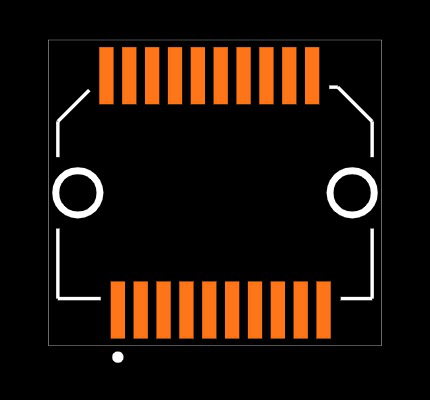

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the MECT-110-01-M-D-RA1

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the MECT-110-01-M-D-RA1

Part Name	MECT-110-01-M-D-RA1
Manufacturer	Samtec Inc.
HTS Number	8536.69
ECCN Category	EAR99
Series	MECT
Country of Origin	Costa Rica
Packaging	Tube
Life Cycle Status	Production
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Current Rating (A)	2 (A)
Contact Plating	Gold over Nickel
Mounting Type	Surface Mount
Voltage Rating (V)	265 V ac
Gender	Female
Body Orientation	Right Angle
Pitch	0.8 (mm)
Length	11 (mm)
Termination Method	Solder
Housing Material	Liquid Crystal Polymer
Width	5.2 (mm)
Depth	7.4 (mm)
Number Of Rows	2
Minimum Operating Temperature	-55 (°C)
Series	MECT
Number Of Contacts	20
Maximum Operating Temperature	+125 (°C)
Contact Material	Phosphor Bronze

Inventory for the MECT-110-01-M-D-RA1 by Samtec Inc. from major distributors.

Supplier	Quantity	Price	Purchase
★ Featured	715			Visit Site
