MF-MSMF020/60-2

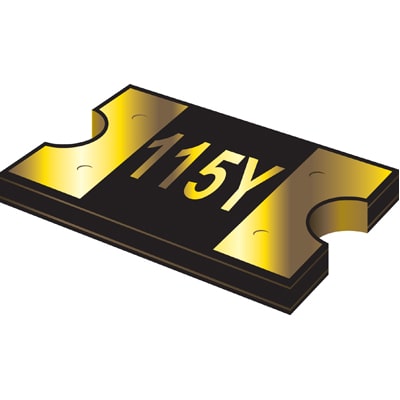

Fuse PTC resettable SMD 1812 0.2A | Bourns MF-MSMF020/60-2
Availability: In Stock
Package Type: 1812
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MF-MSMF020/60-2 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

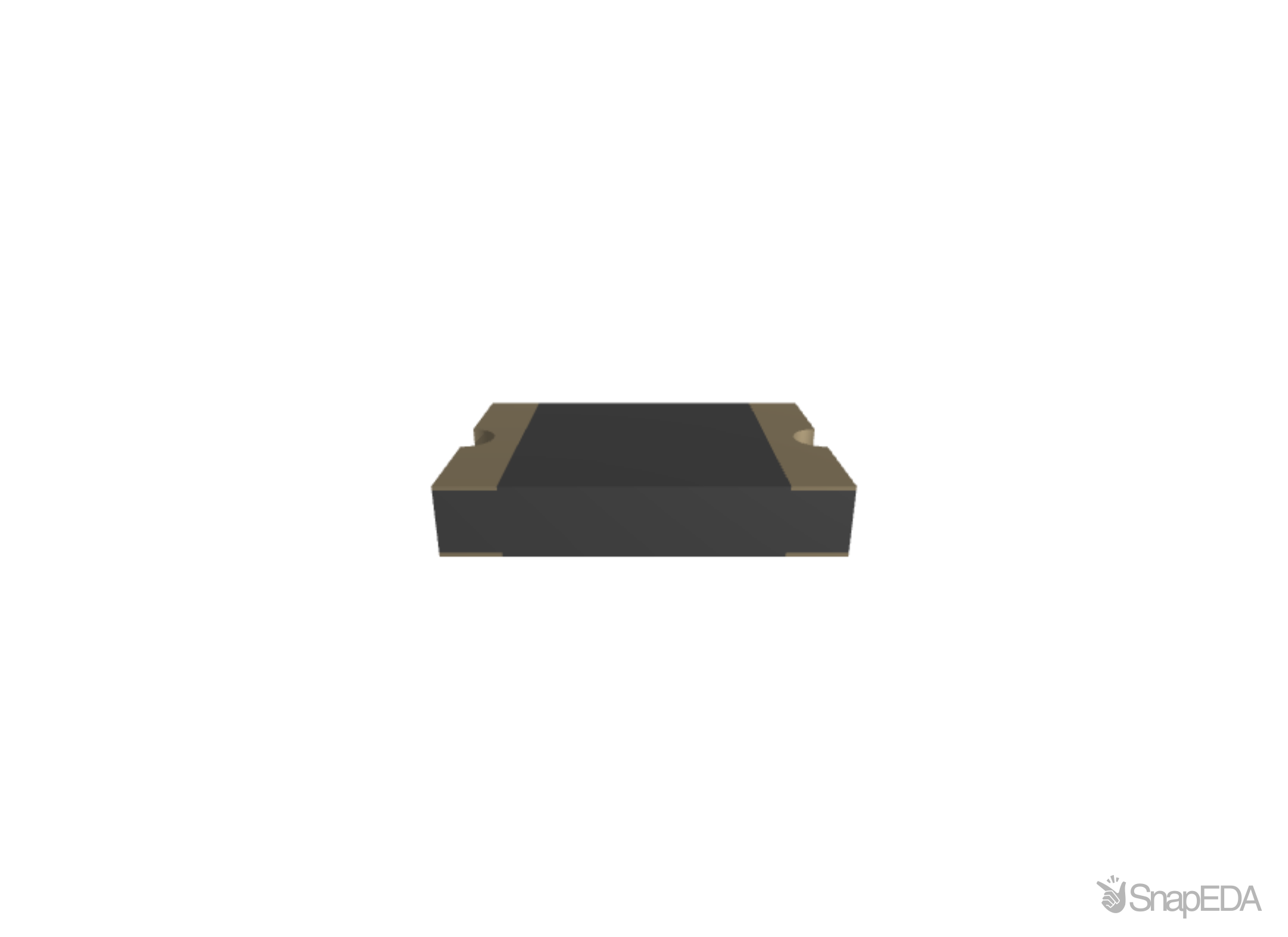

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MF-MSMF020/60-2
| Part Name | MF-MSMF020/60-2 |
| Manufacturer | Bourns |
| Category | Circuit Breakers, Fuses & Protection |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.40 (Ω) |
| Maximum Resistance | 6 (Ω) |
| Hold Current (A) | 0.20 (A) |
| Dimensions | 4.73 x 1.10 x 3.41 (mm) |
| Maximum Current (A) | 40 A |
| Operating Temperature Range | 0 → +23 °C |
| Series | MF-MSMF |
| Terminal Material | Electroless Nickel Immersion Gold |
| Voltage Rating (V) | 60 (V) |
| Height | 1.10 (mm) |
| Width | 3.41 (mm) |
| Length | 4.73 (mm) |
| Package Size | 1812 |
| Trip Current (A) | 0.40 (A) |
| Time To Trip | 0.15 (s) |
| Power Dissipation | 0.8 (W) |
| Maximum Operating Temperature | +23 (°C) |
| Minimum Operating Temperature | 0 (°C) |
