MF-MSMF075-2

Name: MF-MSMF075-2
Brand: Bourns

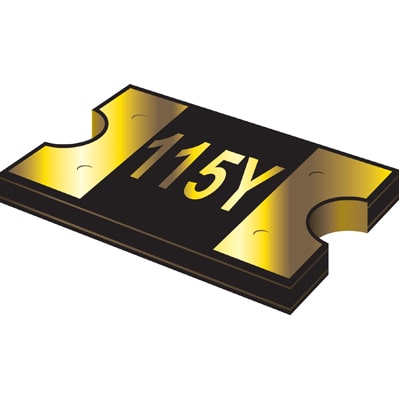

Fuse, Resettable, 100A, Sz 4532, 0.186x0.134x0.033", SMT, 13.2VDC, DCR 0.11 Ohms | Bourns MF-MSMF075-2

Availability: Out of Stock

Package Type: 1812

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the MF-MSMF075-2 by Bourns and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

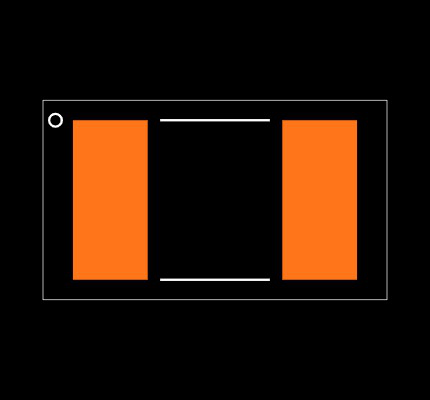

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

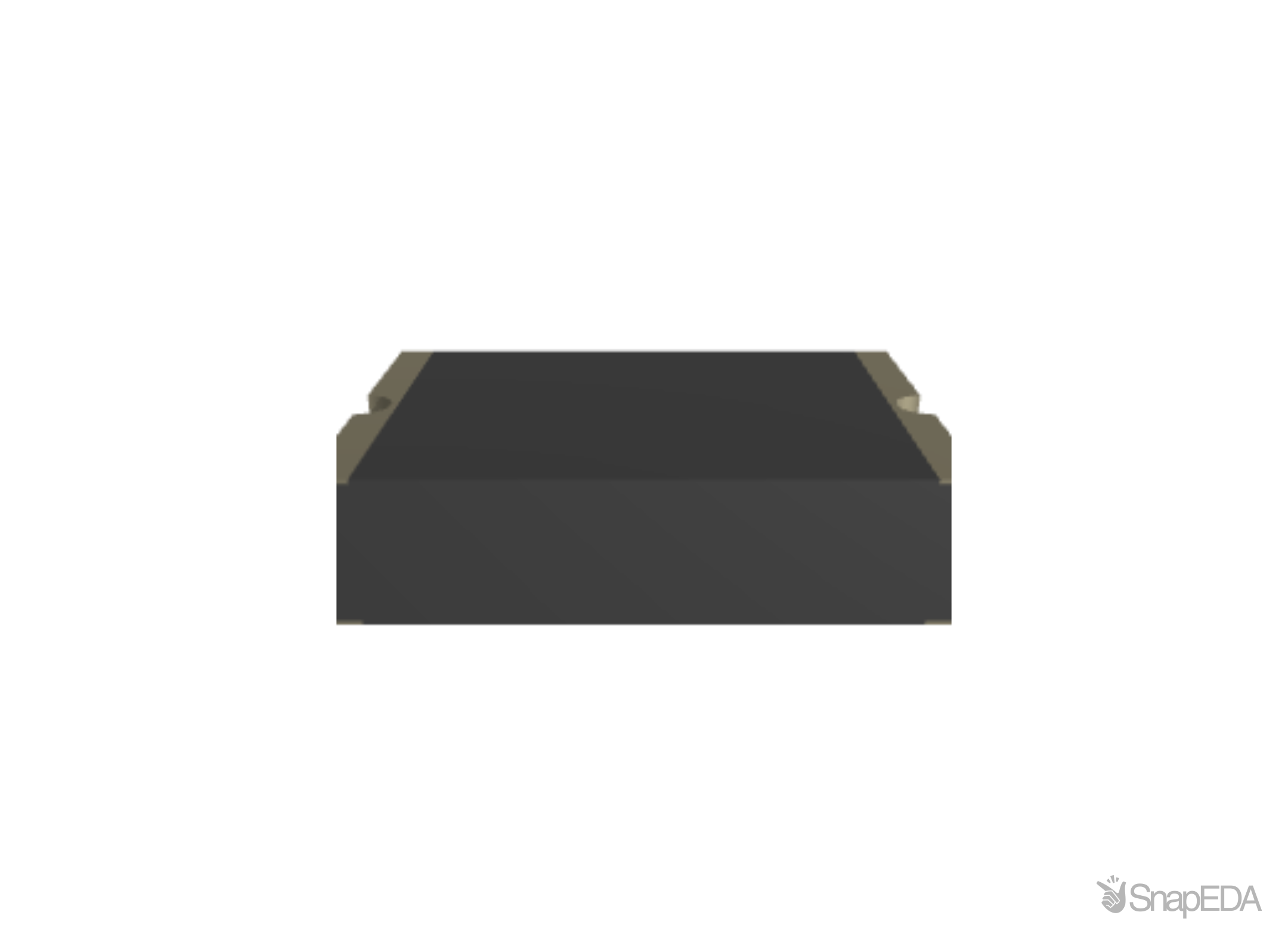

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the MF-MSMF075-2

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the MF-MSMF075-2

Part Name	MF-MSMF075-2
Manufacturer	Bourns
Category	Circuit Breakers, Fuses & Protection
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Minimum Resistance	0.11 (Ω)
Hold Current (A)	0.75 (A)
Dimensions	4.73 x 3.41 x 0.85 (mm)
Maximum Current (A)	100 A
Operating Temperature Range	-40 → +85 °C
Time To Trip	0.2 (s)
Terminal Material	Electroless Nickel Immersion Gold
Voltage Rating (V)	13.2 (V)
Height	0.85 (mm)
Trip Current (A)	1.5 (A)
Width	3.41 (mm)
Length	4.73 (mm)
Power Dissipation	0.8 (W)
Minimum Operating Temperature	-40 (°C)
Package Size	1812
Maximum Resistance	450 (mΩ)
Maximum Operating Temperature	+85 (°C)

We could not find inventory or pricing across major distributors for the MF-MSMF075-2 by Bourns.
