MF-MSMF110/16-2
Fuse, Resettable, 100A, Sz 4532, 0.186x0.134x0.018", SMT, 16VDC, DCR 0.04 Ohms | Bourns MF-MSMF110/16-2
Availability: In Stock
Package Type: 1812
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MF-MSMF110/16-2 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

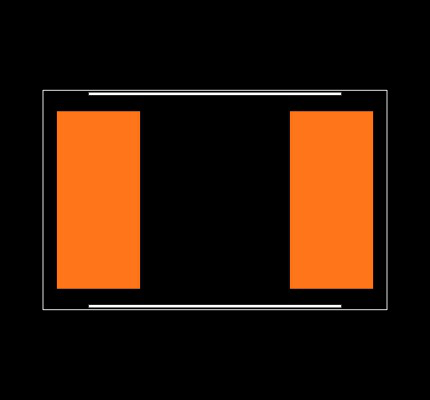

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MF-MSMF110/16-2
| Part Name | MF-MSMF110/16-2 |
| Manufacturer | Bourns |
| Category | Circuit Breakers, Fuses & Protection |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.04 (Ω) |
| Maximum Resistance | 210 (mΩ) |
| Hold Current (A) | 1.1 (A) |
| Dimensions | 4.73 x 3.41 x 0.85 (mm) |
| Maximum Current (A) | 100 A |
| Voltage Rating (V) | 16 (V) |
| Terminal Material | Electroless Nickel Immersion Gold |
| Package Size | 1812 |
| Height | 0.85 (mm) |
| Width | 3.41 (mm) |
| Length | 4.73 (mm) |
| Trip Current (A) | 2.2 (A) |
| Time To Trip | 0.3 (s) |
| Operating Temperature Range | -40 → +85 °C |
| Power Dissipation | 0.8 (W) |
| Maximum Operating Temperature | +85 (°C) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the MF-MSMF110/16-2 by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
74,374
|
|
Visit Site | |
|
★ Featured
|
90,125
|
6,330 x $0.05
|
Visit Site | |
| Arrow Europe |
56,000
|
|
Visit Site | |
| Avnet America |
18,000
|
|
Visit Site | |
| Buerklin |
2,195
|
|
Visit Site | |
| Farnell UK |
2,228
|
|
Visit Site | |
| Newark |
2,228
|
1 x $0.56
|
Visit Site | |
| Onlinecomponents |
17,430
|
|
Visit Site | |
| RS UK |
3,720
|
|
Visit Site | |
| TME |
1,920
|
|
Visit Site | |
| TTI Europe |
66,000
|
2,000 x $0.19
|
Visit Site | |
| Verical |
56,000
|
|
Visit Site | |
| element14 Singapore |
2,228
|
|
Visit Site |
No issues have been reported for the MF-MSMF110/16-2
If you experienced any issues with the symbol or footprint, please report it.
