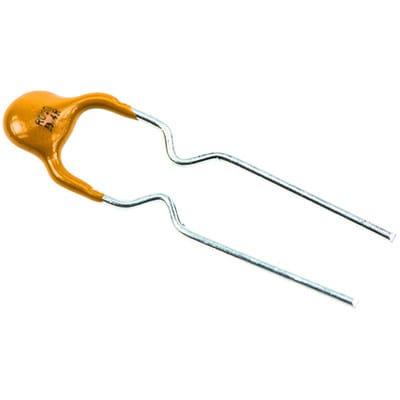

MF-R010
Fuse, Resettable, 40A, Dims 0.291x0.122", Radial, 60VDC, DCR 0.25 Ohms, PCB | Bourns MF-R010
Availability: In Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MF-R010 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MF-R010
| Part Name | MF-R010 |
| Manufacturer | Bourns |
| Category | Circuit Breakers, Fuses & Protection |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 2.5 (Ω) |
| Maximum Resistance | 7.5 (Ω) |
| Hold Current (A) | 0.1 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Current (A) | 40 A |
| Voltage Rating (V) | 60 (V) |
| Lead Orientation | Radial |
| Height | 12.7 (mm) |
| Width | 3.1 (mm) |
| Length | 7.4 (mm) |
| Trip Current (A) | 200 (mA) |
| Time To Trip | 4 (s) |
| Power Dissipation | 0.38 (W) |
| Maximum Operating Temperature | +85 (°C) |
Inventory for the MF-R010 by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
13,493
|
|
Visit Site | |
|
★ Featured
|
18,560
|
4,120 x $0.07
|
Visit Site | |
| Arrow Europe |
21,000
|
3,500 x $0.12
|
Visit Site | |
| Avnet America |
3,500
|
|
Visit Site | |
| Buerklin |
3,189
|
|
Visit Site | |
| Chip One Stop |
3,165
|
|
Visit Site | |
| Conrad |
195
|
|
Visit Site | |
| Farnell UK |
19,793
|
|
Visit Site | |
| Newark |
19,893
|
|
Visit Site | |
| Onlinecomponents |
28,840
|
|
Visit Site | |
| RS Americas |
2,403
|
1 x $0.22
|
Visit Site | |
| TME |
2,363
|
|
Visit Site | |
| TTI Europe |
13,000
|
|
Visit Site | |
| Verical |
21,000
|
3,500 x $0.20
|
Visit Site | |
| element14 Singapore |
19,793
|
|
Visit Site |
